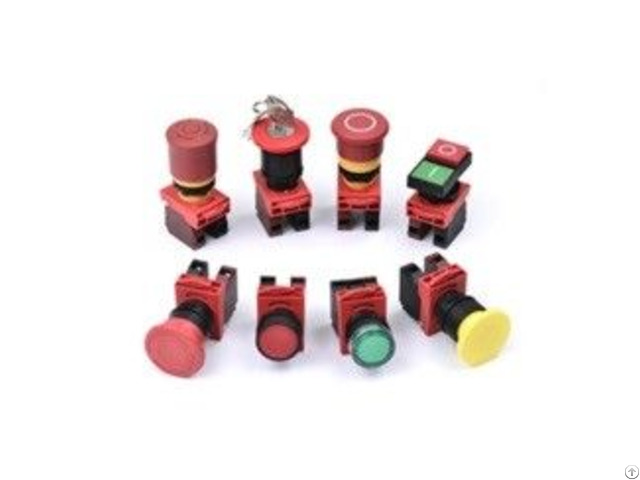

Push Button Switch - Taiwan

Feature:

1 - Precise and sophisticated design, user-friendly into application.

2 - Workable stacking contact block, easy to install and disassembly.

3 - Smart mounting ring design, can connect Φ22mm switchable to Φ30mm diameter.

4 - Several push button type options, can completely fulfill your needs.

5 - Several emergency stop of push button options.

6 - Several positional removable options.

7 - Several control box options.

8 - Compliance to UL approval.

Specifications:

1 - Standards: EN60947-5-1, UL508

2 - Approvals: UL, and CE marked

3 - Utilization Category: AC15 A600

4 - Min Current: 5V, 5mA, DC

5 - Thermal Current (lth): 10A

6 - Rated Insulation Voltage: 600V AC

7 - Insulation Resistance: 100MΩ min.

(DC 500V)

8 - Contact Resistance: 50mΩ max.

(Initial)

9 - Shock Resistance: 500 m/s²

10 - Max Switching Frequency: 1800 operation per hour

11 - Mech.

Life Expectancy: 1 x 107 Cycle min

12 - Electrically Life Expectancy: 100, 000 Cycle min

13 - Vibration: IEC 68-2-6, 10-55Hz±1 Hz, Excursion: 0.35mm, 1 octave/min

14 - Screw Torque: 0.8N-m for five seconds without any fracture

15 - Tightening Torque: 2.5N-m for one min.

without any fracture

Company Contact:

• Posted By: Highly Electric Co., Ltd.

• Phone: 886-2-82261490

• Address: Fl. 10-3, No.738, Chung-Cheng Road, Zhonghe District,, New Taipei City, Taiwan , Taiwan

• Email:

• Website: https://www.highly-elec.com

• Business Description: HIGHLY ELECTRIC CO.

  was established in the year of 1974, building up the industrial switches manufacturer foundation from water tank pressure switch manufacturing.

  In the beginning, Highly Switches was dedicated to develop switches such as door limit switch for the industrial field, then became a professional industrial switches manufacturer.

  In 1994, Highly set up a team to develop an electronic LED switch for the foreseeable market demand.

  As a leader of industrial switch manufacturers, Highly's creative idea not only awaken market demand but also stimulate crowded concentration in this field.

  Business scope covering electronic equipment, computer peripheral, tele-communication, home appliance, medical equipment, industrial equipment, auto parts, and so on, Highly is fully involved and complied with high-quality policy with certified ISO9001 & ISO14001.
