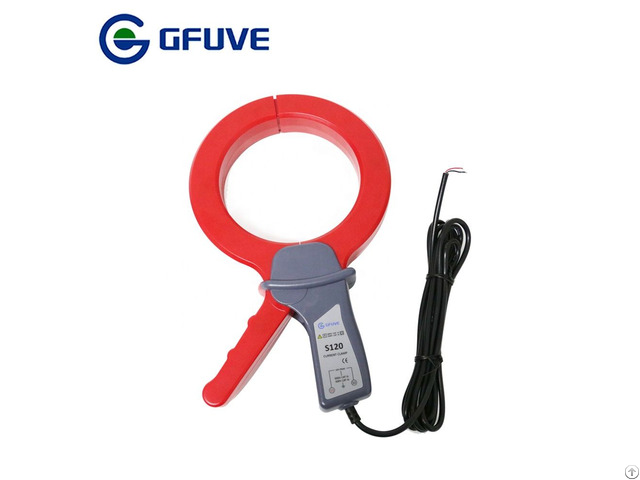

The S120 current clamp is a high performance AC Clamp on current transformer probe with excellent transformation and low phase shift.

The high quality magnetic permalloy core and uniform windings provide for accurate measurements up to 3000A/ 2000A/ 1000A/ 500A AC.

The "ring type" jaw permits good magnetic conduction and cable positionings.

Provide excellent RMS capabilities and reliable signal reproduction.

The S120 clamp on ct is well suited for power quality applications where high accuracy and low phase shift along with wide frequency from 10Hz to 2MHz are important.

Measurement range is 100mA to 3000A.

The S120 clamp on current transformer is a general purpose 3000A AC Clamp current probe transformer designed for use with DMMs & BNC, cable fault analysis and loggers instruments that have a current input.

It has a 1000: 1 or 2000: 1 ratio and output of 1mA per amp or 1mV per amp measured in the jaw.

The S120 has an integral 2.5m or 5m lead terminated.

The rounded jaw design on this clamp probe makes it well-suited for cable fault analysis applications where high accuracy and low phase shift and wide frequency.

Electrical parameters

Ratio: 1000: 1, 2000: 5 or 3000: 5(customized)

Accuracy class: 0.1%, 0.2%, 0.5%

Primary current: 0 - 3000A AC

Secondary current: 0-1A or 0 - 5A AC (customized)

Secondary voltage: 0-2V, 0-5V AC (customized)

Max.

Cont.

Input current: 3600A

Load capacity: ≤20Ω, standard 4Ω

Over voltage category: CAT III 600V

Output signal (AC current): 500mA, 1A, 2A, 5A AC at nominal input current

Output signal (AC voltage): 1V, 2V, 5V, 10V AC at nominal input current

Frequency range: 10Hz-2MHz

Dielectric strength: 3KV 50Hz/60Hz at 1 minute

Temperature range: -40°C to +55°C

Output: 2.5 meter cable with D01 connector or BNC

Max.

voltage not insulated conductors: 600 V

Standard: EN 61010-1, EN 61010-2-032, EN 61010-2-031

IEC60044-1, & IEC61869-2, 600V CAT III

Installation: clamp type

Output mode: lead output(2.5m, 5m or 10m)

Connector: BNC, 4mm banana, signal cable(2 cores), customized

Range version: 100A, 200A, 400A, 500A, 1000A, 2000A, 3000A Accuracy (3000A Range)

0-10A: ≤0.5%

10-100: ≤0.2%

100-3000A: ≤0.1% Phase Shift(3000A Range)

0-10A: ≤0.5°

10-100: ≤0.2°

100-3000A: ≤0.1° Mechanical parameters

Dimensions (L x W x H) (mm): 178 x 290 x 30

Weight (g): 1200

Holding wire diameter (mm): φ120

Max.

jaw opening (mm): 120

Jaw color: Red & Grey

Material: PC+ABS, UL94 V0
