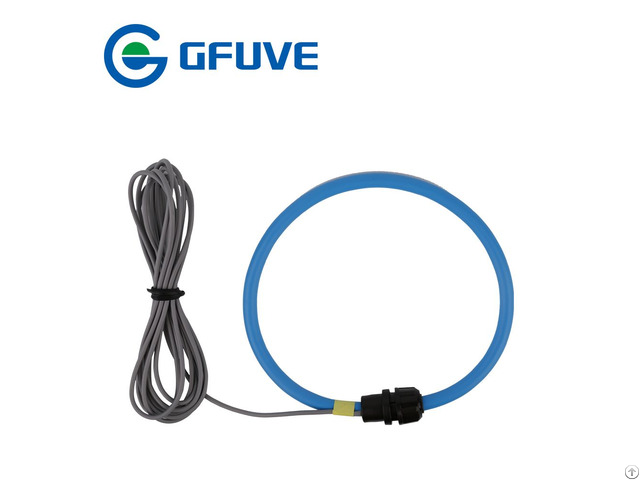

1a 100ka Ac Flexible Rogowski Coil Current Sensor Probe Gfuve Fq Rct02 High Ampere - China

The FQ-RCT02 flexible current sensor is an AC current sensor composed of a flexible Rogowski coil.

The flexible current sensor permits measurements on conductors where standard clamp-on probes cannot be used.

In particular, it can be installed in tight spaces, around cable bundles, around wide or large bus bars, or even wrapped around irregular shapes.

It is suitable for large current measuring.

They combine the benefits of a thin, flexible, clip-around Rogowski (sense) coil with a signal conditioner providing accurate, true rms measurement, of voltage output 100mV/kA.

Models range from 1A to 100, 000Arms with an accuracy of 1% of reading.

Rated EN 61010, 600V CAT IV, 1000V CAT III.

Low cost AC current measurement probe designed to plug into digital multimeters, oscilloscopes, power quality analysis and power or harmonic meters.

The length of the flexible current sensor can be selected from 40cm to 100cm.

Fits around large or small conductors.

Capable of getting into tight or difficult spaces.

Ideal for measuring AC current in a group of conductors.

FEATURES

Flexible and light weights

Easy & quick installation in tight spaces

No danger from open-circuited secondary

No core saturation or damage if overloaded

Excellent linearity 0.2% for current measurement;

Multi-size are available GENERAL DATA

Ambient operating temperature: -30~+80°C

Ambient storage temperature: -40~+90°C

Standards safety：EN 61010-1, EN 61010-2-032, EN 61010-2-031, IEC60044-1, & IEC61869-2, 1000V CAT III APPLICATIONS

Power quality monitoring

Power meters

Smart logger

Energy sub-meters

Distributed measurement systems

DMMs, oscilloscopes
