    • 1ma 200a Ac Double Ratio Voltage Output Current Clamp Probe Gfuve P18 Handheld - China

    price: 180.00 Dollar US$

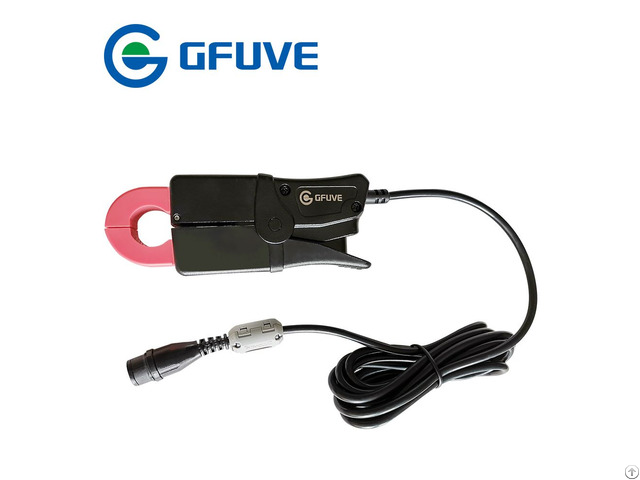

    1ma 200a Ac Double Ratio Voltage Output Current Clamp Probe Gfuve P18 Handheld

    Products Photos Catalog 1ma 200a Double Ratio Photos Catalog

    The round jaw design on the P18 Series double ratio AC current clamp along with the high content permalloy core makes them well suited for power quality applications where high accuracy and low phase shift along with wide frequency are important.

    Measurement range is 1mA to 200A.

    The P18 AC current clamp is a general purpose 200A AC current clamp ct designed for use with DMMs, power loggers and energy meter calibration instruments that have a current input.

    It has a 1000: 1 ratio and output of 1mA per amp or 1mV per amp measured in the jaw.

    The P18 clamp ct has an integral 2.5m lead terminated.

    The rounded jaw design on this current clamp makes it well-suited for power applications where high accuracy 0.1% and low phase shift and wide frequency response are important.

    Electrical parameters

    Ratio: 1000: 1 or 2000: 1 (customized)

    Accuracy class: 0.1%, 0.2%

    Primary current: 0 - 10A AC and 0-200A AC

    Signal output: 10A (100mV/A) and 100A (200A)(10mV/A) with Switch

    Secondary voltage: 0 - 1V AC, 0 - 2V AC, 0 - 5V AC, 0 - 10V AC

    Secondary current: 0 - 100mA AC and 0 - 200mA AC

    Max.

    Cont.

    Input current: 240A

    Load capacity: ≤20Ω , Standard 4Ω

    Over voltage category: CAT III 600V

    Frequency range: 10Hz-2MHz

    Dielectric strength: 3KV 50Hz/60Hz at 1minute

    Temperature range: -40°C to +55°C

    Output: 2.5 meter cable with D01 or BNC connector, 4mm banana

    Max.

    voltage not insulated conductors: 600 V

    Ratio: single winding, or double winding

    Standard: EN 61010-1, EN 61010-2-032, EN 61010-2-031

    IEC60044-1, & IEC61869-2, 600V CAT III

    Installation: clamp type

    Output mode: lead output(2.5m)

    Connector: BNC, 4mm banana, signal cable(2 cores),customized

    Mechanical parameters

    Dimensions (L x W x H) (mm): 52.5 x 137.5 x 28

    Weight (g): 400

    Holding wire diameter (mm): φ18

    Max.

    jaw opening (mm): 18

    Jaw color: Red, black

    Material: PC+ABS, UL94 V0


    Company Contact:


    • Phone: 18901232181

    • Address: Oriental HuaRui A No. 150 Guanzhuang Road Chaoyang District Beijing, 100024, China, BEIJING , China

    • Email: Email


    Published date: February 1, 2024 - Modified date: February 1, 2024

    • Business Description: Beijing GFUVE Electronics Co., Ltd. was established in 2005 - It combined science, industry and trade together as one high-tech enterprise.
