1064nm 10w 20w Pm Isolator Tgg Based - China

price: check with company for price

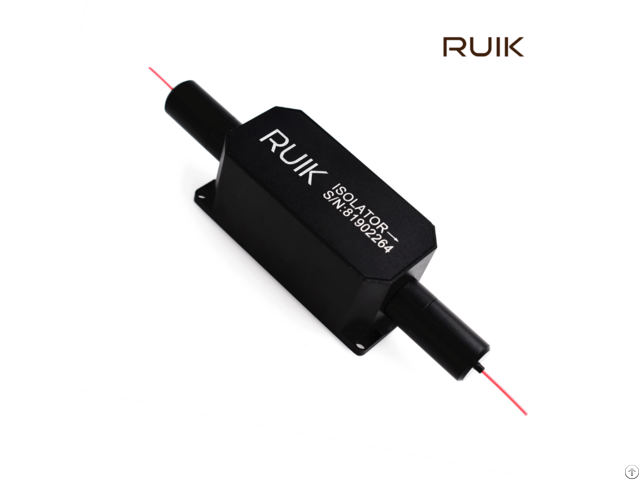

1064nm 10w 20w Pm Isolator Tgg Based

Products Photos Catalog 1064nm 10w 20w Photos Catalog

Features

Low Insertion Loss

High Return Loss

High Isolation

High stability & Reliability

Applications

PM Fiber Amplifier

Testing Instrument

MOPA Fiber Laser

Fiber Laser

Parameters Unit Value Center Wavelength nm 1064 Operating Wavelength Range nm ±5 Typ.

Peak Isolation at 23℃ dB 30 Min.

Isolation at 23℃ dB 25 Typ.

Insertion Loss at 23℃ dB 0.8 Max.

Insertion Loss at 23℃ dB 1.0 Min.

Extinction Ratio at 23℃ dB 20 Min.

Return Loss (Input /Output) dB 45 Max.

Average Optical Power W 10 20 Package Dimension mm 64x28x26 Max.

Peak Power for ns Pulse kW 10 Max.

Tensile Load N 5 Operating Temperature ℃ +10~+50 Storage Temperature ℃ 0~+60


Company Contact:


  • Phone: 0769 28337151

  • Address: Flr. 4, Bldg A, ZhaoHe Industrial Park, #39 CiXia industrial 1st. Rd., Dongcheng District, Dongguan , Guangdong , China

  • Email: Email


Published date: August 1, 2022

  • Business Description: RUIK, founded in 2013, is one factory of optical passive devices, integrating R&D, manufacturing, sales, after-slaes service, with operating space of 2500 square meters.

    We design advanced and cost-effective passive components through our ISO 9001-2015 certified facility.

    Our products have been sold well to domestic and overseas markets, including polarization maintaining fiber components, high power laser isolator, multi-mode pump combiner and fused products.
