Aromatic Polyamide Lifting Air Cushion Stable Working In Earthquake Disaster Relief - China

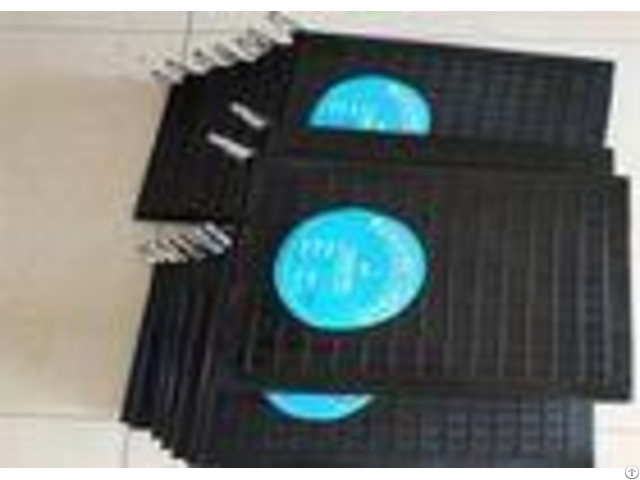

Used For Earthquake Disaster Relief With Rubber Inflatable Black Lifting Air Cushion Advantages of ARD air lifting cushion: 1 - Fast lifting speed (10000 - kilogram 4 seconds) 2.12 kinds of specifications, Lifting force: 1-68T 3 - Lifting height 50 cm, two overlapping of up to 100 cm Constituent part of ARD inflatable lifting cushion: Lifting air cushion by high pressure gas cylinder, cylinder valve, pressure reducer, control valves, high pressure hose, fast interface, cushion, etc.

Using range of ARD inflatable lifting cushion: 1 - To rescue the weight sag staff 2 - After the earthquake disaster relief and rescue work 3 - Traffic accident rescue 4 - Narrow space rescue Specification of ARD air lifting cushion: - - - - Type | 1T | 3T | 5T | 8T | 10T | 12T | 14T | 16T | 18T | 20T | 30T | 40T | 54T | 68T | Size | cm | 15*15 | 25*25 | 30*30 | 35*35 | 37*37 | 39*39 | 42*42 | 46*46 | 50*50 | 56*56 | 65*65 | 75*75 | 86*86 | 96*96 | Thickness | mm | 2.5 | 2.5 | 2.5 | 2.5 | 2.5 | 2.5 | 2.5 | 2.5 | 2.5 | 2.5 | 2.6 | 2.6 | 2.8 | 2.8 | Weight | kg | 0.7 | 1.9 | 2.8 | 3.8 | 4.2 | 4.8 | 5.3 | 6.2 | 7.8 | 9.7 | 13.4 | 18.8 | 23.6 | 29.7 | Insert height | mm | 26 | 26 | 26 | 26 | 26 | 26 | 26 | 26 | 26 | 26 | 26 | 26 | 26 | 26 | Max lifting height | cm | 7.5 | 12 | 16.5 | 20 | 22 | 25 | 26 | 27 | 28 | 30 | 33 | 40 | 47 | 50 | Max lifting force | kg | 1000 | 3000 | 6000 | 8000 | 10000 | 12000 | 14000 | 16000 | 18000 | 20000 | 30000 | 40000 | 54000 | 68000 | Max pressure | bar | 8 | 8 | 8 | 8 | 8 | 8 | 8 | 8 | 8 | 8 | 8 | 8 | 8 | 8 | - - - - Working principle of ARD air lifting cushion: Ressure gas cylinder through the relief pressure regulator (valve), cut 25 mpa high-pressure air To 0.8 MPa, low pressure air 0.8 MPa low-pressure air by connecting two air cushion or two-way controllerTwo airbags, can complete two sets of lifting operations.

The controller has a two-way controller and the one-way controllerTwo types, as the name implies, two-way controller can connect two air cushion or two airbags, one-wayController can connect a mattress or a balloon.

The difference between the airbag and air cushion, airbag lifting forceSmall, high hoisting height, air cushion on the contrary.
