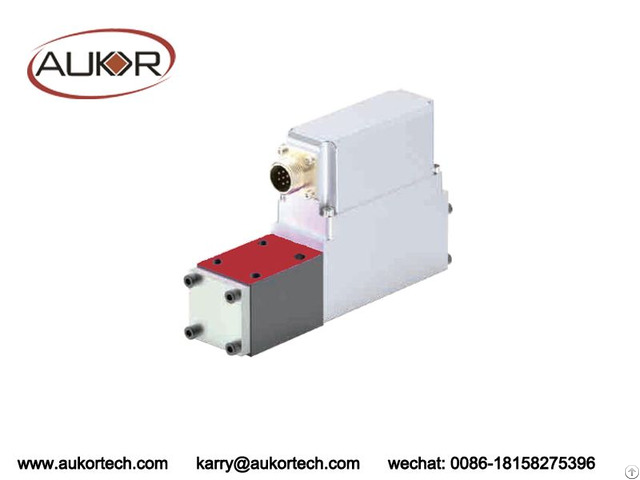

D6 Series Direct Operated Proportional Servo Valve D636 - China

Advantages：

• MOOG D636 Valve Cross Reference to some extent.

• Directly operated servo solenoid directional control valve, with control piston and sleeve in servo quality.

• 315Bar max.

working pressure @ P=70bar.

• Port Size 6 with 40L/min max.

flow rate.

• Actuated on one side, 4/4 fail-safe position when switched off.

• 6P + PE electrical connection, signal input differential amplifier with interface A1 ±10 V or S1 4.20mA.

• Electrical position feedback and on-board electronics (OBE), calibrated at the factory.

• Suitable for electro-hydraulic controllers in production and test systems.

Dimension： 199x46x119.8mm

Mounting Interface：ISO 4401

Vibration resistance： 25g(Discrete Amplifier Type)

Ambient temperature：-20 … +50℃

Storage temperature：-40 … +80℃

Weight： 2700g

Drive：Proportional Solenoid with Position Control, Built-in Electronic Circuitry

Max.

permissible degree of contamination of pressure fluid Purity class to ISO 4406：Class 18 /16 /13

Maximum operating pressure： 350Bar(Port P), 250Bar(Port T)

Rated flow：2L/min, 4L/min, 12L/min, 15L/min, 24L/min, 40L/min

Leakage(100Bar): <1L /min(D6)

Hysteresis ：<0.2%

Zero adjustment: Factory-set ±1 %

Thermal drift: Zero point displacement < 1 % at ΔT = 40 °C

Hydraulic Oil：DIN52524-Part 1 .

Part 3 / ISO11158

Suggested viscosity range：20-100cSt

Max.

permitted viscosity range：10-800cSt

Input signal：+/- 10V, 4.20mA

PN: D6HY40LSN

Price: 2500-2700USD
