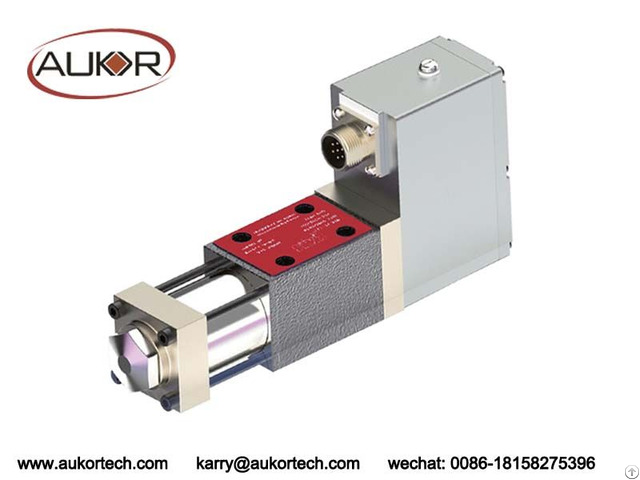

Aukor B6 Series Direct Drive Servo Valves - China

Advantage：

• MOOG D636 Valve Cross Reference to some extent.

• Direct drive Valves(DDV) with electrical closed loop spool position control.

• Electric null adjust.

• High dynamic response.

• No pilot oil flow required.

• Pressure independent dynamic performance.

• Throttle valves for 3-, 4- and 2x2 Way applications.

• Suitable for electro-hydraulic position, velocity, pressure or force control systems.

• Closed-loop spool position and PWM drive electronics are integrated into the valve.

• Low hysteresis and low threshold, low current consumption at and near hydraulic null.

• Permanent magnet linear force motor bidirectionally strokes spool from spring-centered position.

Applications: Military, Aerospace, Injection molding machines, Mobile platforms, Die-casting machines, Machine tools and other fields.

Dimensions： 234x50x113.6mm

Mounting interface：ISO 4401-03-03-0-05

Vibration resistance：3 axis, 30g, 10-2000Hz

Temperature：-20 … +60℃

Storage temperature：-40 … +80℃

Weight： 2500g

Maximum operating pressure： 350Bar(Port A, B, P), 50Bar(Port T Without Y), <350Bar(Port T With Y)

Hydraulic oil：DIN52524-Part 1 .

Part 3 / ISO11158

Suggested oil viscosity：15-100cSt

Oil viscosity：5-400cSt

QN/Ratted flow, Per Throttle Edge ΔP=35 bar: 5L/min, 10L/min, 20L/min, 40L/min, 75L/min

Internal leakage @ 210bar: 0.15, 0.3, 0.6, 1.0L/min

Cleanliness class recommended by ISO 4406 for functional safety：18 / 15 / 12

Recommended cleanliness class compliant with ISO 4406 for a longer service life：17 / 14 / 11

Input signal：+/- 10V, +/- 10mA, 4.20mA

Bushing Spool Type：

C: 4-way, Zero lap, linear characteristic

D: 4-way, 1.5-3% lap, linear characteristic

E: 2x2-way, 10 % lap, linear characteristic

PN: B6H20SCMK2N

Price: 2000-2200USD
