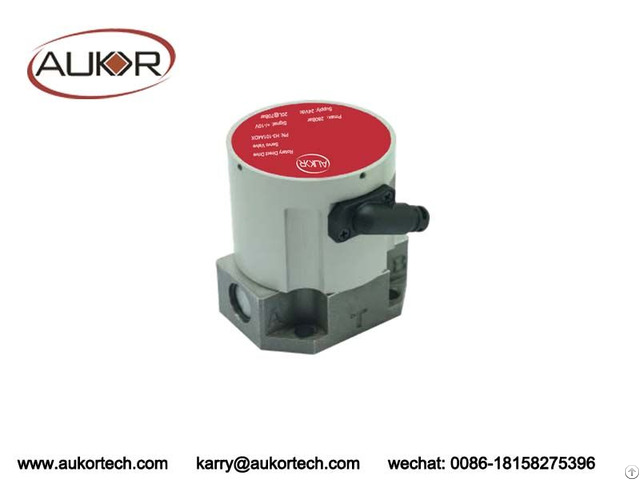

A3 Series Rotary Direct Drive Servo Valves - China
price: 800.00 Dollar US$
Brand: AUKOR
Advantages:
MOOG D761 Series Cross Reference to some extent.
Miniaturised and compact structure.
Independent intellectual property rights.
Low leakage and Contamination-resistant.
High pressure resistant and High frequency response.
Applications: military, aerospace, robotics, mobile platforms, etc.
Dimension： 41.8x41x43mm
Mounting Interface：A3: ISO 10372-01-01-0-92
Drive： Rotary Motor
Electronics: Integrated
Contamination-resistan ce：NAS 8
Vibration resistance：3Axis, 30g
Environmental temperature：-20 … +85℃
Weight： 204g(A3)
Maximum operating pressure： 350Bar(Port A, B, P), 100Bar(Port T)
Hydraulic oil：DIN51524 - 535
Viscosity：5-500cSt
QN/Rated flow, Per Throttle Edge ΔP=35 bar: 5L/min, 10L/min, 15L/min
Internal leakage @ 210bar: <1.5%QN
Step response(100% signal): <2.5ms
Frequency response(±25% signal): >200Hz
Hysteresis: <1%
Threshold: <0.1%
Null bias: <0.2%
Supply voltage: 20 - 28V (Typical 24V)
Input signal: +/-10V, +/-10mA, +/-20mA, 4 .
20mA Maximum supply current: 3A
EM compatibility: EN61000 - 6 - 2, EN55011: 2016 + A1: 2017
Bushing Spool Type: A(Zero-lap)
Seal Material: NBR / FKM
PN: A3H07AE4N
Company Contact:
- Phone: 18158275396
- Address: No.1188 Zhongguan Road,Zhenhai Distrit,Ningbo 315221,China, Ningbo , Zhejiang , China
- Email:
- Website: http://www.aukortech.com
