Aukor A1 Series Rotary Direct Drive Servo Valves - China

price: 600.00 Dollar US$

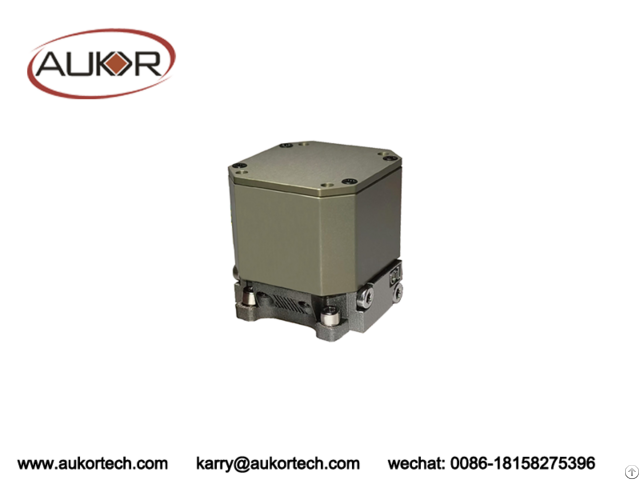

Aukor A1 Series Rotary Direct Drive Servo Valves

Products Photos Catalog Aukor Rotary Drive Photos Catalog

Advantages:

MOOG E024 Cross Reference to some extent.

Miniaturised and compact structure.

Independent intellectual property rights.

Low leakage and Contamination-resistant.

High pressure resistant and High frequency response.

Applications: military, aerospace, robotics, mobile platforms, etc.

Dimension： 34.5 x 31.3 x 34.5mm

Mounting Interface： A1: Same to MOOG E024

Drive： Rotary Motor

Electronics: Integrated

Contamination-resistan ce：NAS 8

Vibration resistance： 3Axis, 30g

Environmental temperature：-20 … +85℃

Weight： 80g(A1), 204g(A3), 820g(A7), 660g(A8)

Maximum operating pressure： 350Bar(Port A, B, P), 100Bar(Port T)

Hydraulic oil：DIN51524 - 535

Viscosity：5-500cSt

QN/Rated flow, Per Throttle Edge ΔP=35 bar: 7L/min

Internal leakage @ 210bar: <0.2%L/min Step response(100% signal): <2.5ms

Frequency response(±25% signal): >200Hz

Hysteresis: <1%

Threshold: <0.1%

Null bias: <0.2%

Supply voltage: 20 - 28V (Typical 24V)

Input signal: +/-10V, +/-40mA Maximum supply current: 3A

EM compatibility: EN55011-2016+A1

Bushing Spool Type: A(Zero-lap)

Seal Material: NBR / FKM

PN: A1H07AE4N


Company Contact:


  • Phone: 18158275396

  • Address: No.1188 Zhongguan Road,Zhenhai Distrit,Ningbo 315221,China, Ningbo , Zhejiang , China

  • Email: Email


Published date: January 23, 2026

  • Business Description: A1 Rotary Direct Drive Servo Valves

    A3 Rotary Direct Drive Servo Valves

    A7 Rotary Direct Drive Servo Valves

    A8 Rotary Direct Drive Servo Valves

    B6 Linear Motor Direct Drive Servo Valves

    D6 Direct-Operated Proportional Servo Valves

    D10 Direct-Operated Proportional Servo Valves

    F02 Double Nozzle Flapper Force Feedback Servo Valves

    F06 Double Nozzle Flapper Force Feedback Servo Valves

    F10 Double Nozzle Flapper Force Feedback Servo Valves

    H10 VCM-Driven High-Speed Servo Valve

    T10 Two-Stage Servo Valves

    M1 CAN Bus Load-Sensitive Control Servo Valve Group

    E1 Series Electro-Hydraulic Servo Actuators (EHSA)

    ED Series Electro-Hydraulic Servo Actuators

    Servo Valve Test Bench
