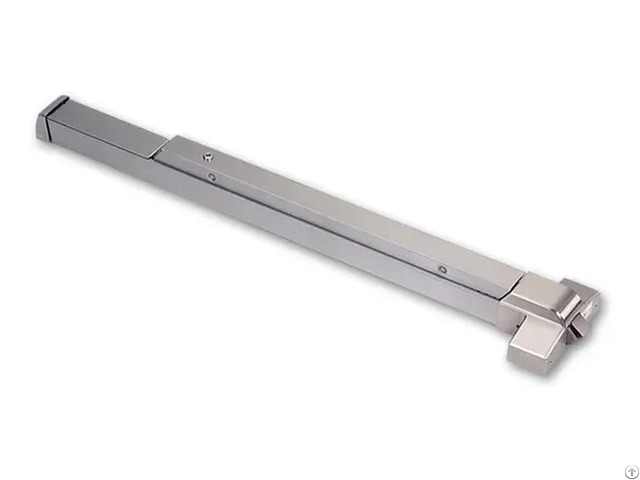

Rim Type Panic Exit Device Fire Rated - Taiwan

Model: 1021F Product Specifications:

Well Laud is a manufacturer of exit device rim type that are manufactured under strict standards.

We have been developing through years of experience and accumulated know-how from the global market.

1 - Conforms to UL Listed (Fire Rated Model 3 Hours)

2 - Conforms to Ansi STD A156 - 3 Grade 1

3 - Fire Rated

4 - Use on:

-Door width from 30"~48"

-Door height 84"~96"

-Door thickness: Standard: 1-3/4".

1-3/8" to 2" thick doors are available

5 - Stile: Minimum 4-1/2"

6 - Non- Handed

7 - Latch Bolt: 3/4" throw stainless steel

8 - Dead Latch Bolt: 5/8" stainless steel

9 - Strike: 5/8" stop plus shim for 1/2" stop

10 - Dogging feature: Allen-Key

11 - Material: Steel or Stainless steel

-Cover: Zinc or Stainless steel

12Finish:

-Painted: Aluminum, Bronze, Duronodic

-Solid stainless steel: Highly polished or Stain

Note

Country of Origin: Taiwan

Sales Methods: Export, Manufacture

Delivery Time: 45 days after receiving the deposit

Packing Detail:

1 - Weight: 3 - 8 KGS / Set

2 - Size: 36"

3 - Package: 1 set in a Box and 6 Boxes in a carton

4 - Included in the Box: panic bar, screws pack, installation sheets, latch and hinge end cover

5 - Special packing request is acceptable

Accessory

1 - Lever Trim Selection

-Entrance function

-Passage function

-Dummy function

-Storeroom function

2 - Cylinder: Rim type, 5-pin, 2 keys, brass

Company Contact:

• Posted By: Well Laud Manufacturing Corp.

• Phone: 886-4-23359030

• Address: No.69, Aly. 62, Ln. 388, Sec. 2, Xinan Rd., Wuri Dist.,, Taichung City, na , Taiwan

• Email:

• Website: https://www.well-laud.com

• Business Description: Well Laud is a professional flush bolt manufacturer renowned for being a supplier of panic exit devices, providing high-performance and durable products.

  We have more than 30 years of experience in this field.

  We take great pride in our product quality and ensure the highest standards in manufacturing and quality control.

  Furthermore, Well Laud is also a leading manufacturer of door hardware and various precision industrial hardware components, including finished parts such as milled parts, stamped parts, and plastic injection parts.

  Our Products:

  - Flush Bolt

  - L Shape Strike For Flush Bolt

  - Concealed Vertical Type Push Bar Panic Exit Device

  - Rim Type Panic Exit Device Fire Rated

  - Panic Exit Device Lever Trim
