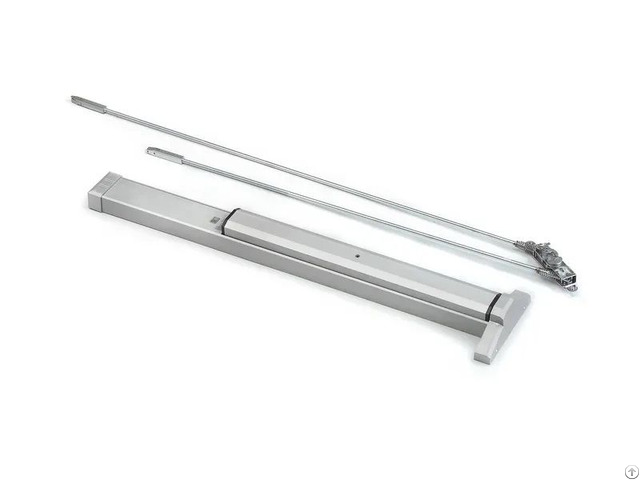

Concealed Vertical Type Push Bar Panic Exit Device - Taiwan

Model: 1052 Product Specifications:

Among concealed panic bar and narrow stile exit device manufacturers, Well Laud ensures top-quality concealed vertical type push bar 1052.

We utilize various professional instruments to achieve continuous improvement through statistical analysis, ensuring our products consistently meet high standards.

1 - Conforms to UL Listed(UL305)

2 - Use on door width from 36"~48"

3 - Door thickness: 1-3/4" to 2”

4 - Stile width: 1-3/4"(45MM) narrow stile aluminum doors

5 - Door height: Up to 84" (7 Ft).

Extension rod is available—12" and 24”

6 - Mounting height: 39-17/32" from floor to center line of panic device

7 - Concealed vertical rod features top and bottom bolt design

8 - Dogging: Fully depress touch bar and hold.

Using hex dogging key and turn clockwise 1/2 turn

9 - Non- Handed

10 - Material:

-Rail and push pad: extruded aluminum

-Head and end cap: Die cast aluminum alloy

11 - Finish: Anodized dark bronze or Aluminum Note:

Country of Origin: Taiwan

Sales Methods: Export, Manufacture

Delivery Time: 45 days after receiving the deposit

Packing Detail:

1 - Weight: 5 - 25 KGS / Set

2 - Size: 36"

3 - Package: 1 set in a Box and 4 Boxes in a carton

4 - Included in the Box: panic bar, screws pack, conceal vertical rod, installation sheets, head and hinge end cover

5 - Special packing request is acceptable Accessory:

1 - Lever Trim Selection

-Entrance function

2 - Mortise cylinder

3 - Mounting pad

4 - Extension rod
