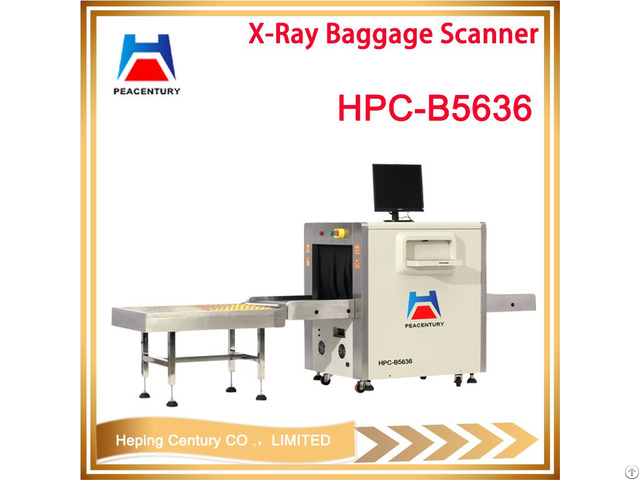

X Ray Baggage Scanner Africa Security Of Governement Department - China

TUNNEL SIZE: 560(w)*360(H)mm CONVEYOR SPEED: 0.22m/s

TYPE: Mutil Energy CONVEYOR: 170 Kg

STEEL PENETRATION: 38mm WIRE RESOLUTION: 40AWG

WARRANTY: 2 Years PRODUCT NAME: X-ray Baggage Scanner

X-ray baggage scanner Africa security of Governement department X-RAY GENERATOR Orientation: Upward Tube Current: 0.4~0.7mA(adjusta ble) Anode Voltage: 80KV(adjustable) Angle: 60° Generator cooling/working periods: Sealed oil bath with forced air/100% OPERATING ENVIRONMENT Storage Temperature: -20oC to 60oC Operating Temperature: 0oC to 45oC Relative Humidity: 20 to 95% non-condensing System Power: 220 VAC (±10%) 50±3HZ Power wastage: 1.0 KW (Max) Noise<65DB X-RAY Sensor: L-shaped array detector 24bit Single energy Image Performance System: Display: High-resolution 19 inch color LCD display Color quality: 24-Bit real colors based on materials Edge enhancement: Object contour edge is more distinct Super image enhancement: Image detail is more distinct High penetration display: Increase the contrast of bright area in image to make the area that is easy to penetrate appear more clearly Low penetration display: Increase the contrast of dark area in image to make the area that is difficult to penetrate appear more clearly.

Magnifier: Partial magnifying function Brightening/dimming: Increase/Decrease brightness of image Image recurrence: Display the previous twenty images and process any one of them Image restoration: Restore image to initial status Image storage: Real-time store any image and process it in operation status Special features: Network interface: Capable of connecting to LAN, and support multi-terminal check for baggage at same time Safety ray: Ray is transmitted under automatic control, avoiding the error One-key shutdown control: Just rotate the key to shut down the machine; it is safety, easy and convenient Eagle eye: Capable of expediently observing the magnifying area Self-diagnosis function: Give message automatically if malfunction for prompt maintenance X-ray baggage scanner Africa security of Governement department Neutral Packing:

Q'TY: 1 PCS/Wooden Case N.

W: 440 KGS

G.

W: 560 KGS MEAS: 2080(L)*864(W)*1193(H) Wood Case Size: 2300(L) X 970(W) X 1350(H) mm=2.95CBM
