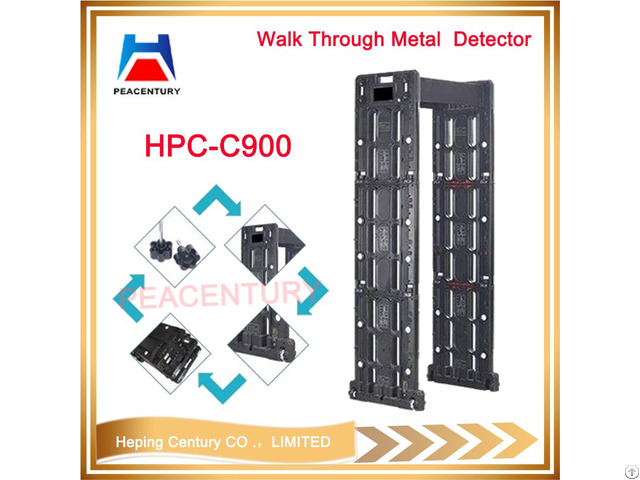

Touch Screen Portable 24 Sensitivity Detect Zones Door Frame Metal Detector - China

DETECTING ZONE: 24 Zones POWER: <20W

COLOR: Siver, Or Black POWER SUPPLY: AC90V-250V 50HZ-60HZ

GROSS WEIGHT: : 50KG EXTERNAL DIMENSION: 2250*850*500mm

CHANNEL DIMENSION: 2010mm (H) *700mm (W)*500mm (D) PASSAGE DIMENSION: 2051*710*500mm

FOLD DEMENSION: 889*606*484mm PACKING DIMENSION: 1000*700*540mm

WATERPROOF: TP67 SCREEN: 7-inch LCD Touch Scree

Touch Screen Portable 24 Sensitivity Detect zones Door frame metal detector Product Features Adjustable sensitivity of each detection zone

Multi-alarm sounds to choose

Operating frequency can be adjusted manually or automatically

Move after folded or installation(two move methods to choose)

Detection technology: Even detection technology, no blind spot

Internet technology: Remote upgrade system and remote control system

Working band: 100 working bands

Sensitivity of each detection zone: 255level

Statistics: Record the pass and alarm numbers

Query function: The system has real-time information query function

Intelligent Standby: The system has intelligent standby operation alerts

Detection speed: more than 60 people pass and detect in 1 minute

Touch screen: 7-inch HDMI LCD touch screen, iPad interface style, easy to operate and understand.

IP Grade: IP55 superior waterproof performance(optional) Self diagnostic, it will inform the user when exit the systemTouch Screen Portable 24 Sensitivity Detect zones Door frame metal detector Specification

Detection objects: knives, guns, coins External Dimension: 2250x850x500mm Passage Dimension: 2051x710x500mm Fold Dimension: 889x606x484mm Packing Dimension: 1000x720x590mm Humidity: 99%, non-condensing Working environment: -20 ℃~85 ℃ Weight: NW 48KG, GW 53KG Input : AC 110V~240V/50Hz~60Hz Output : DC 12V/5A 12W Power supply: the whole system is equipped with polymer battery, life time 8, 16, 24, 48, 72 hours (optional).

Touch Screen Portable 24 Sensitivity Detect zones Door frame metal detector
