Ha102 600 Hydraulic Automatic Bollards Impact Tested - China

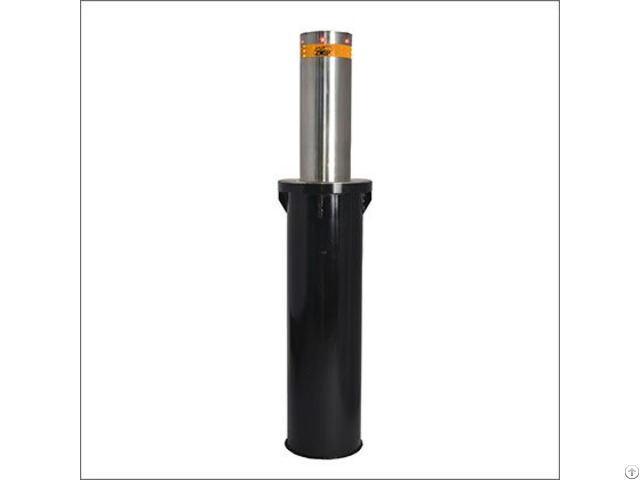

The HA102-600 hydraulic automatic retractable traffic bollard is a high-quality hydraulic security bollard which is particularly suitable for the intelligent and automatic control of traffic within residential areas.

It is an ideal solution for entrance with high security requirements.

The solid body can stop the vehicle with high tonnage and high speed easily.

Meanwhile, it has the advantage of invisibility and aesthetics.

Normally, the bollard system will be integrated into entrances and exits of commercial premises and car parks as well as of leisure and sports centers with a middle security level (M30).

Bollards can be operated by remote controller, push button, card reader and other existing access control system.

ZASP Hydraulic Automatic Bollards China Supplier can perfectly combine with ZASP boom barrier, tyre killer and road blocker for high level security.

ZASP is one of the leading Hydraulic Automatic Bollards China Suppliers, Welcome to visit our website and buy or wholesale our cheap HA102-600 Hydraulic Automatic Bollards at low price.

Installation drawing of drain mode

Installation steps

1 - Cut the ground surface and excavate, the foundation base need around 800mm and 1130mm.

2 - Fill the bottom with 20-30mm pebble and sand as water seepage stratum.

3 - Embed the bollard, make sure the head of the bottom is at the same level with the horizontal ground.

4 - Install the wiring tube and drainage pipe.

Make sure each wire should be secured by waterproof tape

to avoid water vapor permeated into the wire.

5 - Power on to test.

Make sure the bollards can work well.

Then cover the head of the bollard to avoid the concrete dirty it.

All the drainage pipe hole need to be covered by structural adhesive.

6 - Pour the concrete into the foundation base.

Be careful to avoid the movement of bollard.

7 - Tidy up the bollard head and ground surface, complete installation ● Dimension: φ400×1150mm

● Bollard diameter: 217±1mm, customized 271mm diameter

● Bollard thickness: 10±1mm

● Height above ground: 600mm, customized 700-800-900-1000mm height

● Rising time: 3.8s

● LED light: Yes

● Protection level: IP68

● Working temperature: -40℃ ~ +70℃

● Crash rating: China D1 rating, 1500KG/100KMH, penetration 0.87 meters

● Material: 304 stainless steel, optional 316 stainless steel

● Color: customized HA102 hydraulic automatic bollard is automatic security barrier systems.

It was passed crash tests under China standard in 2018 January.

Compare to other standard system, China standard have more higher and clear requirements on equipment work ability after installation.

The HA102-600 Hydraulic Automatic retractable traffic bollard is a high-quality hydraulic security bollard which is particularly suitable for the intelligent and automatic control of traffic within residential areas.

It is an ideal solution for entrance with high security requirements.

The solid body can stop the vehicle with high tonnage and high speed easily.

Meanwhile, it has the advantage of invisibility and aesthetics.

Except crash tests, HA102 automatic bollard passed continues 5000 lifting test, IP68 water proof and dust proof test, temperature test etc.

series of performance tests.

According to different types, equipment lifting time could range from 3 until 5 seconds.

With emergency release system, power outage or other emergencies, can be artificially lower, release vehicles.

What is a hydraulic bollard?

Hydraulic is the best method movement principle for automatic rising bollards.

The hydraulic apparatus is small, but raise and down stable when needed, also it easy to installation, and it has excellent performance of lifting force and durability.

Fetures：

Hydraulic Automatic Bollards is designed to meet the requirement of control vehicles not entry in sensitive areas.

It has high practicability, reliability, safety, and customer can meet the needs of protection with lower cost.

Multi- configuration provided for various customers.

High security automatic remote control traffic road rising bollard for schools and parks.

Customized for different users requests

Durable, Overload, Operate Smoothly, Low Noise, Fast speed up&down

Remote control system realize wireless control up&down within 30 meters range

Micro-control technology makes bollards work stable and reliable, Easy integrate to other systems

Compatible with road barrier, Turnstiles and other access system control to achieve automatic control

Advanced Hydraulic pressure technologies

Manual control hydraulic system devices
