Suprema Rb Sm501 Hydraulic Wedge Barriers Anti Terrorist K12 M50 P1 - China

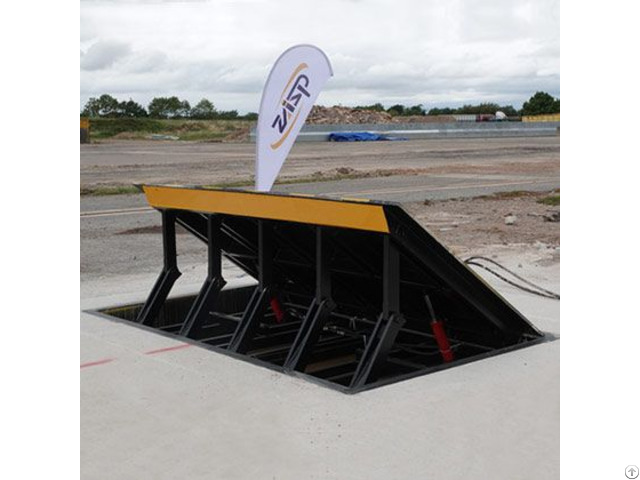

ZASP High Security Shallow Mount Suprema Wedge Barrier SM501-1000 provides a high level of security against unauthorized vehicle access, we designed especially for entrance points that have a threat of vehicle attack or for the ones that have high security requirements.

ZASP Suprema RB-SM501-1000 shallow mount features for limiting the depth of the basement compartment and to avoid the main problems of laying in presence of public services, moreover it is possible to install the road blocker on ground level by using a slope.

The drive unit is electron-hydraulic, external hydraulic station and controller, typical rising/descend time is 3-5 seconds, in case of emergency, rising/descend time can be as low as 1.5 seconds if hydraulic accumulator added the optional EFO system.

If you are interested in our hydraulic wedge barriers, please contact us as soon as possible! Specification

Dimension: (Intercept width+190mm)L x 1974mmW x 300mmH(Depth)

Intercept Height: 1000mm

Intercept Width: 3M – 4M – 5M – 6M

Depth: 300mm

Top plate thickness: 25mm

Rising Time: 4-6s

Rated Power: 4KW for 3M & 4M, 5.5KW for 5M

Operating Temperature: -40°C~+70°C (FOR LOW TEMPERATURESSEE THE HEATING RESISTANCE)

Impact Tested: IWA & PAS, 7500KG / 80KMH, equal ATSM K12/M50

Impact Result: ZERO Penetration

Mini Order: 1 sets

Lead Time: 10 working days after confirm the payments

OEM/ODM service are available

Available Items

Emergency fast raise system;

Emergency buttons with lock down;

Accumulator systems for hydraulic operation in power failure conditions;

Access and intercom systems;

UPS backup for the electrical system;

Interlocking systems to give air-lock type protection on sites with higher threat levels;

Inductive loop systems;

Traffiffiffic lights and back indications systems;

Integral inset warning lights in;

A3 steel cover plate with anti-slip coating;

E.F.O.

emergency start-up circuit (about 1.5 seconds);

Equipment for manual operation;

Heat-resistant;

Traffic light with two lights (green-red);

Loop inductive detector;

Inductive loop.

Our products have a wide range of applications, if you want to know more, welcome to click here! Case Studies Advantages

Hydraulic wedge barriers, also known as rising bollards or rising barriers, are security barriers that are used to block vehicle access to a restricted area.

Some advantages of hydraulic wedge barriers include:

1 - They are effective at blocking vehicle access to a restricted area and can be raised or lowered as needed.

2 - They are made from durable materials that can withstand impact from vehicles.

3 - They can be used in a variety of settings, including parking lots, government buildings, and military bases.

4 - They are easy to operate and can be controlled remotely or by a security guard.

5 - They can be used as a standalone security measure or integrated into a larger security system.

6 - They can be customized to fit the specific needs of a facility or location.

7 - They are generally low maintenance and require minimal upkeep.

We look forward to working with you!

Are you looking for a reliable and effective way to secure your facility or property? Look no further than hydraulic wedge barriers!

These innovative security barriers are designed to block vehicle access to restricted areas, providing a strong layer of protection for your property.

With their durable materials and easy operation, hydraulic wedge barriers are the perfect solution for a variety of settings, including parking lots, government buildings, and military bases.

Protect your property and keep your peace of mind with hydraulic wedge barriers.
