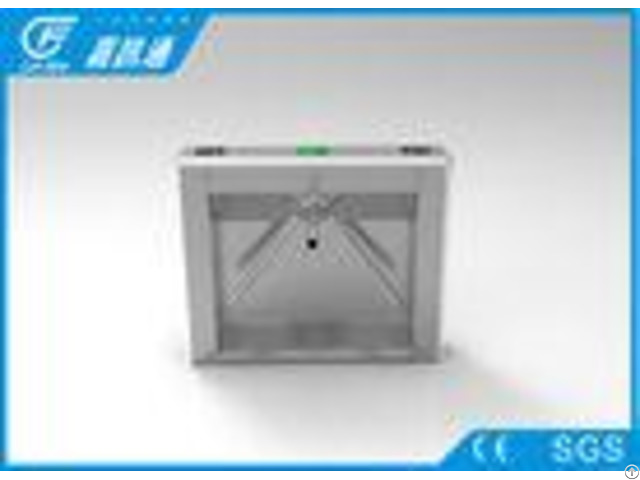

Security Mechanical Vertical Tripod Turnstile High Speed With Fingerprint Reader - China

Factory Security Mechanical Vertical Tripod Turnstile High Speed With Fingerprint Reader Quick details: 1 - Framework: 304# Stainless Steel 2 - Single direction or bidirection 3 - 3groups of infared sensor 4 - NO/NC two models for option to relieve heavy traffic 5 - Dynamic super bright LED display to show the direction Parameters: - - - - Power Supply | AC220V10V, 50Hz / AC110V10V, 60Hz | Power Consumption | 100W | Temperature | -15 to 60 degrees | Humidity | <95%, without concretion | Passage Width | 600mm | Passing Speed | 35 persons/min (normal open), 30persons/min (normal close) | Arm Open/Close Time | 2s | Input Interface | +12V electrical signal or impulse signal with width more than 100ms, drive current >10mA | Communication Interface | RS485 (Distance: <=1200m) / TCP/IP | Working Environment | Indoors or outdoors with shed | - - - - Tripod Turnstiles Description Automatic barrier arms enable immediate clear of the passage for urgent evacuation of people in emergency case.

Emergency unblocking of the turnstile is performed by input of the Fire Alarm signal to the turnstile or in emergency power failure.

At that the barrier arm automatically falls down ensuring free passage.

When power supply is restored or Fire Alarm signal is removed, the arm shall be manually set into operating position.

turnstile is made of stainless steel which provides not only elegant design, but also resistance to corrosion when used outdoors.

Power supply board is placed in the turnstile housing and provides a full set of the turnstile control modes.

Board allows an emergency passage opening on fire alarm signal (input Fire Alarm) and has inputs for connection of intrusion detector with siren and inputs for connection of remote indicators.

To ensure fast and convenient passage it is recommended to install one turnstile per 500 people working the same shift, and on the basis of maximum working load 30 persons/min.

Turnstiles can also be completed with railings, produced in the same design.

High Speed Factory Security Mechanical Tripod Turnstile Gate with fingerprint reader High Speed Factory Security Mechanical Tripod Turnstile Gate with fingerprint reader High Speed Factory Security Mechanical Tripod Turnstile Gate with fingerprint reader

Company Contact:

• Posted By: Shenzhen Jiaxuntong Computer Technology Company

• Phone: 86-755-29838914

• Address: 4th floor Hengling Industrial area Longhua district Shenzhen China, Shenzhen , guangdong , China

• Email:

• Website: https://www.electronicturnstile.com

• Business Description: Established in Y1998, Jiaxuntong computer technology Co., Ltd, is a professional developer and manufacturer of intelligent building access control system and high-end channel equipments including tripod turnstile, swing turnstile, flap turnstile, full height turnstile and speed gate.
