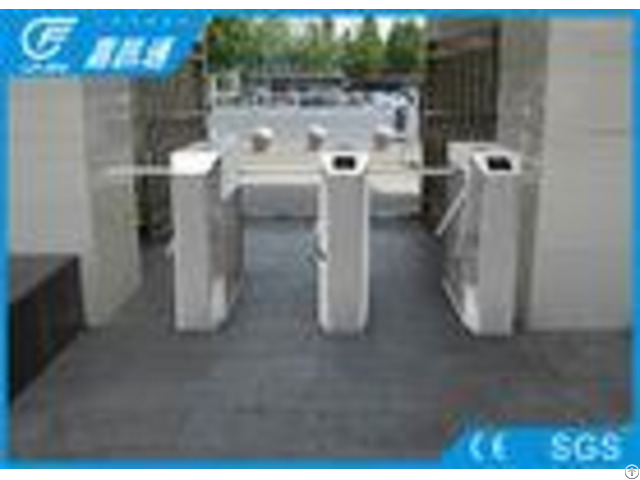

Face Recognition Vertical Tripod Turnstile Id Intergrate Access Control System 3000000 Cycle - China

Tripod turnstiles face recognition & ID intergrate access control system Specification # urnstile with built-in electronics # Hub with automatic Anti-panic barrier arms # Remote control panel Automatic "Anti-panic" barrier arms enable immediate clear of the passage for urgent evacuation of people in emergency case.

Emergency unblocking of the turnstile is performed by input of the Fire Alarm signal to the turnstile or in emergency power failure.

At that the barrier arm automatically falls down ensuring free passage.

When power supply is restored or Fire Alarm signal is removed, the arm shall be manually set into operating position.

Automatic "Anti-panic" barrier arms unlike the mechanical ones exclude the direct physical involvement of the operator and their unsanctioned folding by unauthorized people.

TTR-08 tripod turnstile is made of stainless steel which provides not only elegant design, but also resistance to corrosion when used outdoors.

The turnstile housing has specially designed places for concealed mounting of proximity card readers.

The reader operating zones are indicated on the lateral covers of the turnstile with special pictograms.

The turnstile can be operated from the ACS controller, the RC panel or the WRC (optional).

Power supply board is placed in the turnstile housing.

After each passage the reset mechanism sets barrier arms into initial position.

The built-in hydraulic damper provides smooth and silent operation of the turnstile.

Special Fire Alarm input allows connecting the device that sends an emergency unblocking signal (for example, from the fire alarm).

It is also possible to connect the passage zone control sensor and the siren to the turnstile.

To ensure fast and convenient passage it is recommended to install one turnstile per 500 people working the same shift, and on the basis of maximum working load 30 persons/min.

Turnstiles can also be completed with railings, produced in the same design superiority: 1 - We use 304 stainless steel from manufacturer ZhangPu, it is the best 304 stainless steel in China, the price and quality higher than other brands like LianZhong 304 and Taigang 304 - We use Lianzhong's 304 stainless steel several years ago, but it get rusty after 1-2 years, so we changed to use ZhangPu brand.

2 - We use original Mitsubishi brand drive board, it is stable with overheat and overload dual protection, other company use cheap drive board, it is easy to be burned, need extra cost to buy a new drive board.

3 - Our flap gate with mechainical auto-recerse and IR sensor, double protection to avoid crushing onto user.

So our gate life time more than other cheaper one, more stable and durable, you will no need worry about the after sale service for your end users after you selling them.
