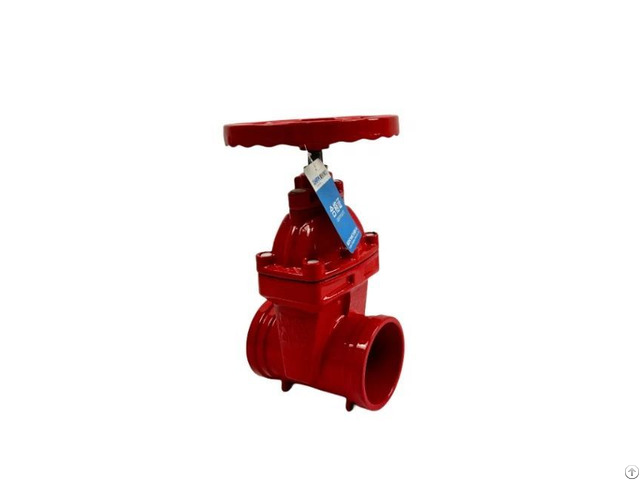

Grooved Soft Seal Gate Valve - China

OVERVIEW

This grooved soft seal gate valve product is used to cut, connect and adjust the medium in the pipeline, has good fluid control characteristics and closing sealing performance, and is widely used in metallurgy, electric power, petroleum, chemical industry, air, gas, combustible gas and water supply and drainage and other non- corrosive media pipelines.

FEATURE

1 - The overall rubber encapsulation of the valve plate, its good coverage performance and

accurate size, to ensure the reliability of the seal;

2 - The bottom of the valve adopts the same flat- bottomed type as the water pipe, and does not produce debris siltation;

3 - The valve is painted with non-toxic epoxy resin as a whole to prevent corrosion and life, and can be used not only for drinking water system but also for sewage system.

4 - It is very convenient to replace the sealing wearing parts.

Features :

Flange End ANSI150LB/GB Standard /BS Standard

Steam Material 2CR13 /Stainless Steel

Bonnet Material Ductile Iron, QT450

Body Material Ductile Iron, QT450

Seal Material Ductile Iron, QT450, NBR

Surface Finishing Epoxy Red or Blue

Working Pressure 10/16 Bar

Reliable Gate Valve Solutions for Every Industry

We are a trusted valve manufacturer offering a wide range of high-quality gate type valves to meet the diverse needs of various industries.

Our product lineup includes the Grooved Soft Seal Gate Valve, Hard Seal Concealed Stem Gate Valve, NSY Gate Valve, OSY Gate Valve, and Rising Stem Hard Seal Groove Gate Valve.

These gate valves are designed for reliable performance, offering excellent sealing capabilities and robust construction for both residential and industrial applications.

As experienced gate valve suppliers, we ensure that our products are manufactured to the highest standards, providing efficient and long-lasting solutions for flow control in pipelines.
