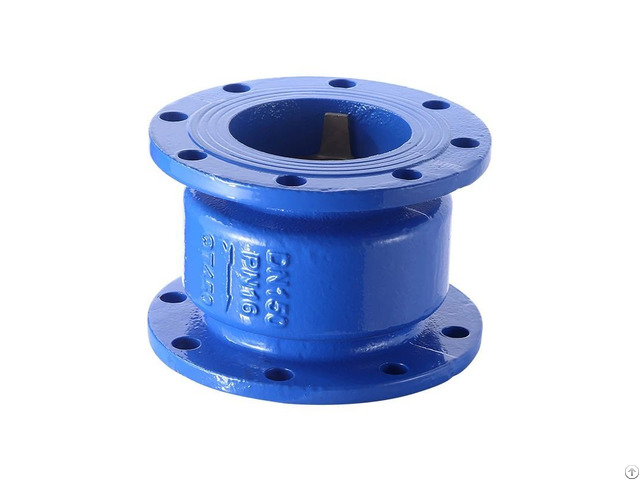

H41x 16q Flanged Muffler Check Valve - China

Product Usage

Muffler check valve is used in pure pipelines and industrial, environmental protection, water treatment, high-rise building

water supply and drainage pipelines to prevent the reverse flow

of the medium.

Features

The valve disc is guided by the central axis at both ends of the

inlet and outlet, and the opening and closing are flexible.

The

valve disc can be installed horizontally or vertically.

The valve

disc is spring loaded.

Its quick closing can effectively reduce the

water hammer pressure, with good sealing performance and no

noise when closing.

Features :

Flange End : ANSI150LB/GB Standard /BS Standard;

Steam Material : 2CR13 /Stainless Steel;

Bonnet Material : Ductile Iron, QT450;

Body Material : Ductile Iron, QT450;

Seal Material : Ductile Iron, QT450, NBR

Surface Finishing : Epoxy Red or Blue

Working Pressure : 10/16 Bar Quiet, Durable, and Efficient Flow Control Solutions by XHFM

XHFM is a leading check valve supplier, specializing in high-quality check valves for a variety of industrial applications.

The Flanged Check Valve and Grooved Muffler Check Valve offer enhanced noise reduction and vibration dampening, making them ideal for systems that require quiet and reliable operation.

Our Rubber Flap Check Valve is known for its durability and flexibility, providing effective sealing in various conditions.

As a trusted valve manufacturer, XHFM ensures all our valves meet the highest standards of performance, safety, and quality, making them suitable for applications in water treatment, oil and gas, HVAC systems, and more.
