Yd3216 Rd Uv Flatbed Printer Background Wall Printing Machine - China
price: contact company for price
Printer model YD3216-KD
Print size 3200mm×1600mm
Print head Konica KM1024(14pl)
Konica KM1024(14pl)
UV curing Systems 085 mercury lamp curing, the energy level is adjustable from 3 to 4 degree / led UV lamp (optional)
Color System C, M, Y, K, Lc, Lm, W, V(Optional)
Print height Up to 100mm
Number of nozzles Single row 4, 5, 6, 7, 8 (Optional)
Ink Type Imported original UV ink
Print speed High-speed mode 35m²/h
Normal mode 28m²/h
High resolution mode 20m²/h
Power requirement AC220V/6000W；50/60 HZ
Interface mode High speed USB
RIP Software PhotoPrint, Seeget
Color management International ICC standard
Printer weight 1500KG
Working environment the optimum temperature: 20℃-28℃ Relative humidity: 40%-60%
Printer size 5150 × 2740 × 1400(mm)

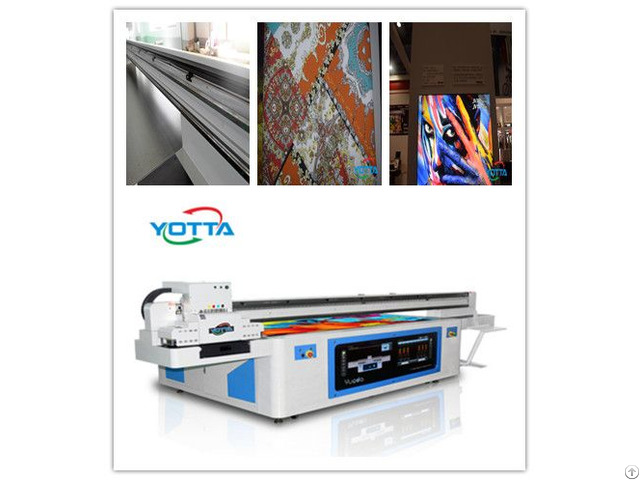

YD3216-KD UV Flatbed Printer adopts original imported Konica KM1024(14pl) print head, and it can print onto super huge flat materials which maximum print size is up to 3200mm*1600mm and thickness within 100mm.
The materials including wood, glass, metal, leather, ceramics, stones, paper, PVC, clothes, plastics, buildings and so many more.
The print effect of YD-3216-KD is vivid, the print speed is fast and can achieve mass production.
It is the best machine for large scale industrial operation, and it can be used to print images onto large format glass, ceramic, metal background wall, entrance, screen and sliding doors etc.
Application fields:
Rigid materials: glass, ceramic, metal plate, wood, data plate.
acrylic panel, KT board, PVC sheet, melamine sheet, marble board, etc.
Flexible materials: paper, plastic film, leather, textile, etc.
Company Contact:
- Posted By: Shenzhen Yueda Printing Technology Co.,Ltd.
- Phone: 13925227012
- Address: Gangbei Industrial Park,Baohe Road,Longgang District,Shenzhen, shenzhen , China
- Email:
- Website: http://www.yo-da.com
Published date: September 23, 2016
- Business Description: We specialize in manufacturing UV different types and sizes of flatbed printers.
Our printers can print any pictures on any flat materials with embossment and 3d effect.
They are widely used in advertising, decoration and other industries.
