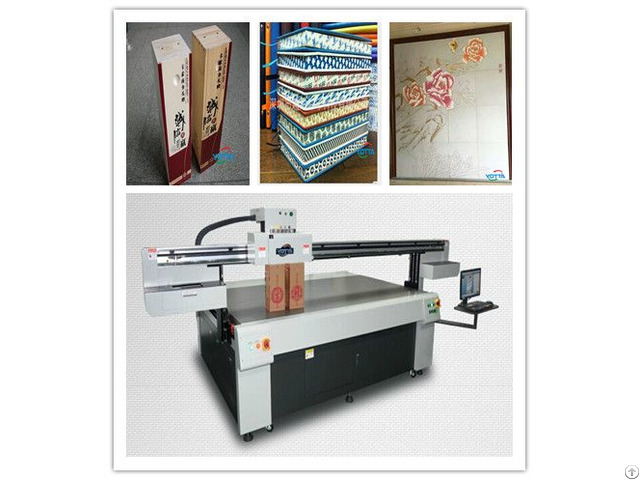

Yd2513 35ra Gift Wnie Box Uv Flatbed Printer - China

Model YD2513-35RA UV PRINTER

Print size 2500*1300mm

Print head Ricoh-Gen4 grey level piezo print head

Print resolution 600*1200dpi

Print speed 4Pass 25㎡/h

6Pass 17㎡/h

8Pass 13㎡/h

Print mode Unidirectional and Bidirectional

Color system LM, LC, Y, M, C, K(Optional)

Special ink UV White color ink or UV varnish

Ink type Environment protection UV-curable inks (NO VOC)

Number of nozzles 3-8pcs

Print height Up to 340 mm

Materials type Rigid or Flexible

Application Glass, acrylic, wood, Ceramic, Metal, PVC board, Corrugated Board, Plastic etc.

RIP software PhotoPrint, Seeget

Input format Adobe Pistscript Level3, PDF, JPEG, TIFF, EPS, AI

Power requirement 220V/AC(±10％)50/60HZ 4.8KW

Printer weight 1200KG

Printer size 3620mm [L]*2080mm [W]*1200 mm [H]

Working environment Separate, little sunlight, ventilated workshop Temperature: 18℃—30℃ (64℉—86℉) Humidity: 30%～70% (Non-condensing) Ventilation equipment : Suggest Overhead exhaust fan, displacement 600 cfm

Package N.W./G.W. 100KG/1300KG

Printer Size 3620*2080*1200mm

Packing Fumigation-Free Wooden Case

HS code 8443321300

1 - Adopting 4-8 Ricoh Gen4 print heads, variable droplet printing of 7pl to 21 pl, to achieve the print resolution of 600*1200dpi, the printing effect is more bright.

Ricoh print head is reliable and long life, conducive to long time uninterrupted work.

2 - Ungraded on print height, printing thickness up to 340mm.

3 - Automatic anti-collision function: The carriage can stop working automatically when collides with the media, so as to protect the carriage and print head.

4 - Ink thermostat system, to keep the consistency of ink viscosity in low temperature, adapt to different ambient temperature requirements.

5 - Equipped with emergency back up power supply, when the computer powers off of suddenly, can still maintain the negative pressure system, keep the negative pressure system working properly and enter into the working state quickly when power on.

6 - Automatic height measurement system: automatically measure the thickness of substrates, efficient and accurate.

7 - In addition to the basic 6 colors (CMYK, LC, LM), it also supports white ink and varnish, which can achieve 3D, emboss, highlight and other special effects.

Company Contact:

• Posted By: Shenzhen Yueda Printing Technology Co.,Ltd.

• Phone: 13925227012

• Address: Gangbei Industrial Park,Baohe Road,Longgang District,Shenzhen, shenzhen , China

• Email:

• Website: http://www.yo-da.com

• Business Description: We specialize in manufacturing UV different types and sizes of flatbed printers.

  Our printers can print any pictures on any flat materials with embossment and 3d effect.

  They are widely used in advertising, decoration and other industries.
