Yd3200 Hybrid Uv Printer Tv Background Printing Machine - China
price: contact company for price

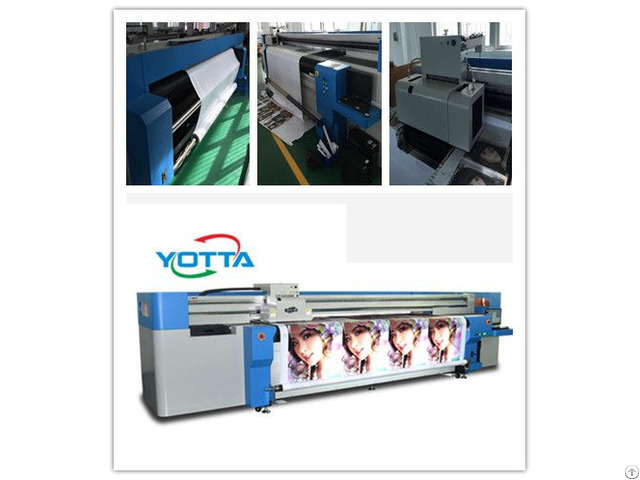

YD3200-RC Hybrid UV printer
YD3200-RC Hybrid Printer adopts imported original grey level Ricoh G5 internal heating industrial printhead, the number of printhead can be increased or decreased according to your requirements, the print speed can up to 38㎡/h (4 PASS), Can meet the demands of large quantities production capacity, Specially design a high-speed and high - precision UV printer for medium and small size processing enterprises and can meet their high precision and high speed production requirements.
Printer model YD3200-RC
Print head Ricoh-Gen5
Number of nozzles 3-8 pcs
Power 8.5 KW (38A)
Print width 3.2 m
Print materials Rigid materials and Flexiable materials
Print thickness Max 50 mm
Suitable mediums Rigid materials: glass, arcylic, leather, wood, metal sheet, PVC board, Corrugated board, reflective film, corrugated board
Flexible materials : ( wallpaper, advertising cloth, car sticker, etc.
)
Printing speed
4pass Single row 38 ㎡/h；double row 76㎡/h
6pass Single row 29 ㎡/h；double row 58㎡/h
8pass Single row 22 ㎡/h；double row 44㎡/h
Ink color C, M, Y, K, Lc, Lm (optional)
Ink type Environmental UV curing ink(No VOC)
Special ink UV white ink
Input format Adobe Postscript Level 3, PDF, JPEG, TIFF, EPS, AI
Printer weight 1550KG
Printer Dimension 5.8m[L] × 1.7m[W] × 1.6m [H]
Environment requirement Independent, clean, low dust, low light, well-ventilated workplace environment temperature: 18℃~ 30℃ (64℉~ 86℉) Relative Humidity: 30% to 70% (non-condensing) Ventilation: Recommended use overhead exhaust fan, exhaust the amount of 600 cfm
Company Contact:
- Posted By: Shenzhen Yueda Printing Technology Co.,Ltd.
- Phone: 13925227012
- Address: Gangbei Industrial Park,Baohe Road,Longgang District,Shenzhen, shenzhen , China
- Email:
- Website: http://www.yo-da.com
Published date: September 23, 2016
- Business Description: We specialize in manufacturing UV different types and sizes of flatbed printers.
Our printers can print any pictures on any flat materials with embossment and 3d effect.
They are widely used in advertising, decoration and other industries.
