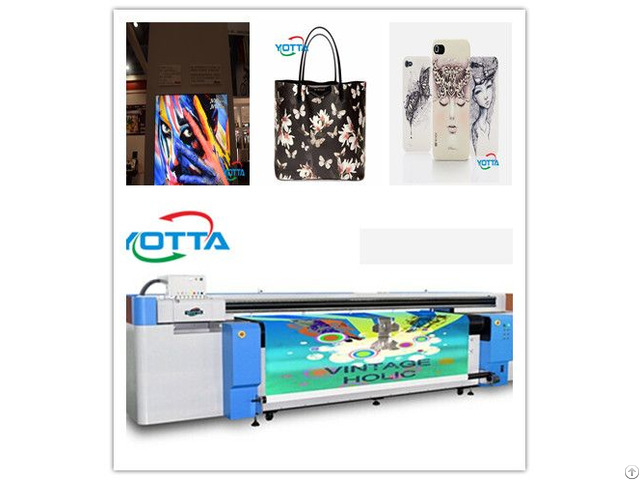

Yd2600 Rc Hybrid Uv Printer Popular 3d Background Wall Printing Machine - China

Printer model YD2600-RC

Print head Ricoh-Gen5

Number of nozzles 3-8 pcs

Print resolution 600*2400dpi

Print width 2.6 m

Print materials Rigid and Flexible materials

Print thickness 50 mm

Ink type Eco UV curing ink(No VOC)

Print speed

4pass single row36 ㎡/h；double row 72㎡/h

6pass single row27 ㎡/h；double row 54㎡/h

8pass single row20㎡/h；double row 40㎡/h

Ink color C, M, Y, K, Lc, Lm(optional)

Special ink UV White ink

Input format

Adobe Postscript Level 3, PDF, JPEG, TIFF, EPS, AI

Printer weight 1400KG

Printer dimensions 5.2m[L] × 1.7m[W] x 1.6m [H]

Power 8.5 KW (38A)

Working environment Separate, little sunlight, ventilated workshop Temperature: 18℃～30℃ (64℉～86℉) Humidity: 30%～70% (Non-condensing) Ventilation equipment : Suggest Overhead exhaust fan, displacement 600 cfm

YD2600-RC Hybrid UV Printer adopts imported original grey level Ricoh G5 internal heating industrial printhead, the number of printhead can be increased or decreased according to your requirements, the print speed can up to 36㎡/h (4 PASS), can meet the demands of large quantities production capacity.

YD2600-RC is a high-speed and high - precision UV printer for medium and small size processing enterprises and can meet their high precision and high speed production requirements.

Rigid material: glass, acrylic, wood, metal plate, pvc sheet etc.

Flexible Material: leather, wall paper, advertising colth, car sticker

Company Contact:

• Posted By: Shenzhen Yueda Printing Technology Co.,Ltd.

• Phone: 13925227012

• Address: Gangbei Industrial Park,Baohe Road,Longgang District,Shenzhen, shenzhen , China

• Email:

• Website: http://www.yo-da.com

• Business Description: We specialize in manufacturing UV different types and sizes of flatbed printers.

  Our printers can print any pictures on any flat materials with embossment and 3d effect.

  They are widely used in advertising, decoration and other industries.
