300w Off Grid Solar Panel Kits For 12v Charging System - China

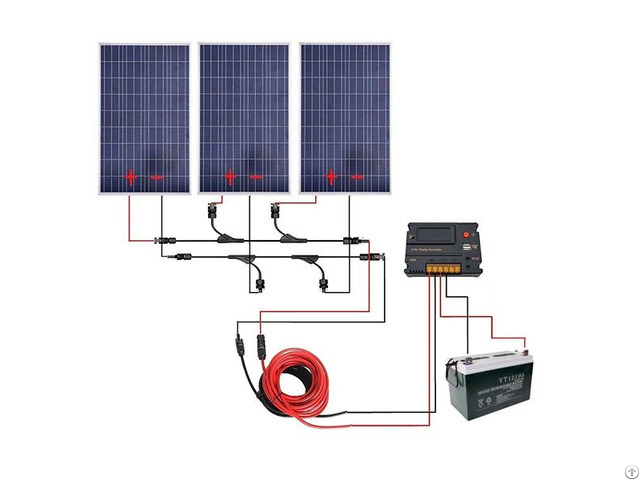

These off-grid solar panel kits include 3pcs 100W poly solar panels, 1pc 20A temperature compensation charge controller with LCD, 15ft extension cable adaptor, 2 pairs Y branch MC4 connector, 3 set Z mounting brackets, 1 pcs 100Ah 12V sealed lead-acid battery for 12-volt charging system in home car boat caravan.

Features

1 - Corrosion-resistant aluminum frame for extended outdoor use, allowing the panels to last for decades as well as withstand high winds (2400Pa) and snow loads (5400Pa).

2 - Easy Installation with the pre-drilled hole.

each solar panel comes with 90cm 12awg cable with MC4 Male/Female quick connectors

3 - Basic component for on-grid, off-grid solar panel system, caravan, RV, boat, Greenhouse solar panel system

4 - Used for all solar power systems (on-grid and off-grid): homes, boats, businesses, and industrial energy supplementation!

5 - 12V 100AH Sealed Lead Acid (SLA) rechargeable maintenance-free battery Specification

100W Poly Solar Panel

Maximum/Peak Voltage(Vmp): 21.6V

Open Circuit Voltage(Voc): 18V

Maximum/Peak Current(Imp): 6.11A

Short circuit current (Isc): 5.55A

Output Tolerance: ±3%

Temperate coefficient of Isc: (0.10+/- 0.01) %/℃

Temperate coefficient of Voc: – (0.38 +/-0.01) %/℃

Temperate coefficient of power Voc: -0.47%/℃

Temperature range: -40℃~+80℃

Frame: Heavy duty aluminum

Kind of glass and its thickness: Low Iron, high transparency tempered glass of 3.2mm

SLA Battery Voltage: 12V

Weight: 20.2 pounds (9.16KG)

Size: 39.3*26.2*1.38in (996*665*35mm) 20A LCD Charge Controller

Rated charge current: 10A, 20A

Rated discharge current: 10A, 20A

USB Output voltage: 5V

Total USB output current: 3A

DC output voltage: 12V

Total DC output current: 2A

Short circuit recovery time: 10s

Open circuit voltage of solar panel: 40V

No load loss: 0.05W

Overvoltage protection: 15V; X2/24V

Float charge voltage: 14V; X2/24V

Discharge recovery voltage: 12V; X2/24V

Over-discharge voltage: 10.5V; X2/24V

Control mode: Software intelligent control

Working temperature: -35℃~+55℃ Battery

Normal Voltage: 12V

Rated Capacity(20hr): 100AH

Battery Cell Type: Lead Acid

Weight: 28kg(61.7lbs)

Battery Dimensions: 330mm x 175mmx190mm(13”*6.9”* 7.5”)
