800w Complete Off Grid Polycrystalline Solar Power System - China
price: contact company for price

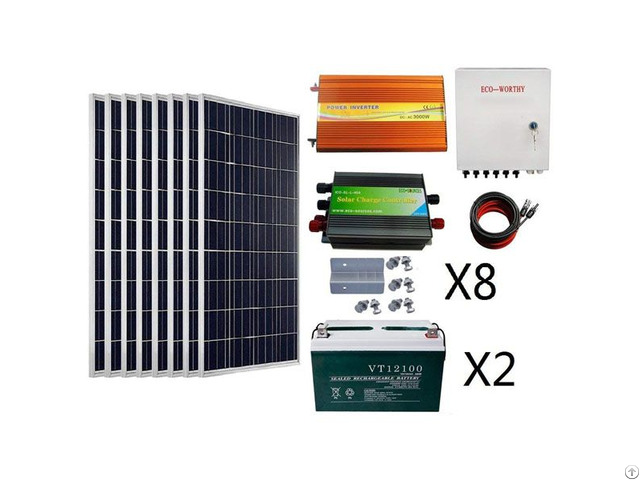

This Pre-package off-grid polycrystalline solar power system included: 8pcs 100W Polycrystalline Solar Panel +8 sets Z Style Mounting Kits +2pcs 100AH battery+1pc 45A Solar Controller +1pc 3000W 24V-110V Off Grid Pure Sine Wave Inverter +2pcs 16.4′ 12AWG Solar Cables (totally 32.8′) +1pc 6-String Solar Power Combiner Box.
Features
1 - Great for camping or remote cabins.
Power devices in remote backcountry locations.
2 - High-efficiency silicon solar cells ensure high performance of solar modules and create maximum power output.
25-year transferable power output warranty: 5-year/95% efficiency rate, 10-year/90% efficiency rate, 25-year/80% efficiency rate.
3 - Controller Connection: SOLAR for solar panels, LOAD for DC appliances, BATTERY for battery.
4 - Inverter Connection: DC port be connected with the battery, AC output be connected with AC appliances.
Specification
1 - 100AH Battery Normal Voltage: 12V
Rated Capacity(20hr): 100AH
Battery Cell Type: Lead Acid
Weight: 28kg(61.7lbs)
Battery Dimensions: 330mm x 175mmx190mm(13”*6.9”* 7.5”) 2 - 100W Poly Solar Panel Related power: 100W
Open circuit voltage (Voc): 21.6V
Max power voltage (Vpm): 18V
Short circuit current (Isc): 6.11A
Working current (Iop): 5.55A
Output Tolerance: ±3%
Temperate coefficient of Isc: (0.10+/- 0.01 )%/ ℃
Temperate coefficient of Voc: – (0.38 +/-0.01 )%/ ℃
Temperate coefficient of power Voc: -0.47%/℃
Temperature range: -40℃~+80℃
Frame: Heavy duty aluminum
Kind of connection: waterproof junction box, can be customized
SLA Battery Voltage: 12V
Size: 39.3*26.2*1.38in (996*665*35mm) 3 - 3000W 24V-110V Off Grid Pure Sine Wave Inverter Output voltage: 110V AC
Continuous power: 3000W
Surge power: 6000W
Waveform: Pure sine wave
Input Range: 21-30VDC
Working Input: 24VDC
Fuse: 35A
Low battery alarm: 10.5+0.3V
Over voltage shut down: 15.5+0.5V
Over load shut down: 3600W over 10 seconds
Over heating shut down: >75℃
Over Thermal Protection: shut down the output
Working Temperature: -10℃~+50℃
Frequency: 60Hz 4 - Solar Combiner Box Model: ECO—PV6
Input Circuits/Circuit Breakers: 6
Circuit Breaker Rating: 10A
Max Total DC Output Current: 60A
Max Input Voltage Rating: 250V
Max Output Voltage Rating: 250V
Protection Grade: IP65
Operational Environment Temperature: -30℃~+70℃
Relative Humidity: 0-95%
Cooling Method: Natural Cooling
Surge Lightning Protection: Yes
Dimensions: 10.3″x12.6″x4.5″ 5 - 45A Charge Controller Maximum Charging Current: 45A
Rated Voltage: 12V/24V
Charging Circuit Voltage: <200mv
Charge-Off Voltage: 13.7v/27.4v
Load Off Voltage: 10.5V/21V
Load On Voltage: 12.6V/25.2V
MAX Solar Panel: 540W/1080W
