24v 700 Watts Off Grid Solar And Wind Powered Hybrid System - China

The Eco-Sources pre-packaged 700 Watts Off Grid solar & wind powered hybrid system including 1pc 400W wind turbine generator with the hybrid controller, 2pcs 150W poly solar panels, 1pc 24cm cable with MC4 connector.

Perfect for household daily use.

Features

1 - The charge controller is 12V/24V autodetect, please connect the battery to the controller firstly, and then connect the solar panel and wind turbine with the controller.

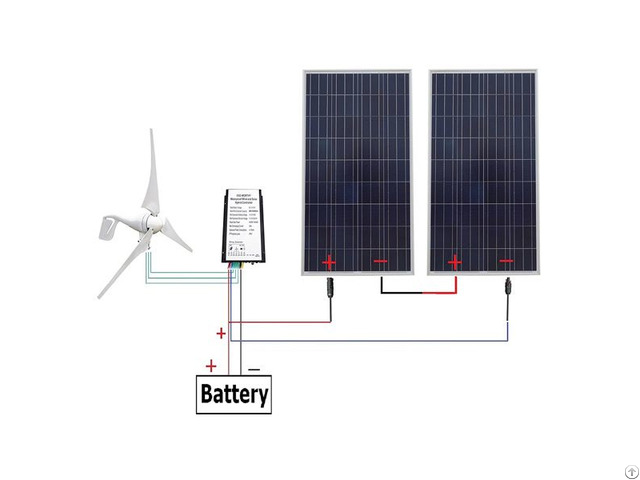

2 - Controller connection: Red wire is positive for all connections; Black wire connect with battery negative; Green wires connect with the wind turbine (in no particular order); Blue wire connect with solar negative; Yellow wire connect with 12V/24V DC devices.

3 - This system doesn’t come with a pole, we suggest you buy one in the local place.

Height of tower/pole: 4.5m-10m, pole diameter: 7.4cm – out diameter, 5.3cm – inner diameter.

4 - The type of hybrid controller is PWM, it’s designed with overload protection and short circuit protection functions.

5 - High efficient and compact alternator with high-performance NdFeB permanent magnet.

Fully integrated regulator that automatically shuts down when the batteries are completely charged.

Specification

150W Poly Solar Panel Rated power: 150W

Open circuit voltage (Voc): 22.4V

Max.

Voltage (Vmp): 18V

Short circuit current (Isc): 9.20A

Max.

current (Imp): 8.33A

Cell Efficiency(nc): 17%

Cell Size: 6*6inches/156*156mm

Number.

type and arrangement of cells: 36pcs Poly-Crystalline Silicon(4*9)

Module Efficiency(nm): 15.1%

Max-System Voltage(VDC): 1000v

Output Power Tolerance: ±3%

Temperate coefficient of Isc: +0.05%/ ℃

Temperate coefficient of power Voc: -0.38%/℃

Operating Temperature range: -40℃~+90℃

SLA Battery Voltage: 12V

Size: 59.1″*26.4″*1 .

6″ (1500*670*40mm)

Weight: 26.5lbs/12kg


Cable Length: 35.4inches/900mm 400W Wind Turbine Generator Rated Power: 400W

Nominal Voltage: DC12-24V

Cut-in Wind Speed: 2.5m/s

Rated wind speed: 10.5m/s

Maximum wind speed: 35m/s

Rated Rotate Speed: 800r/min

battery capacity: 200AH-400AH

Fan blade quantity: 3pcs

Wind leaf material: Carbon fibre composite

Rotor diameter: 1.2M

Tower diameter: Suggest more than 48mm

Altitude of towe: 4.5M-10M

control system: Automatic fan dedicated controller

Generator style: Permanent-magento-phase A.

C

Net weight: 17.64lbs (8kg)

Packing: 27.1″*14.4″*8.3″ (687*365*210mm)
