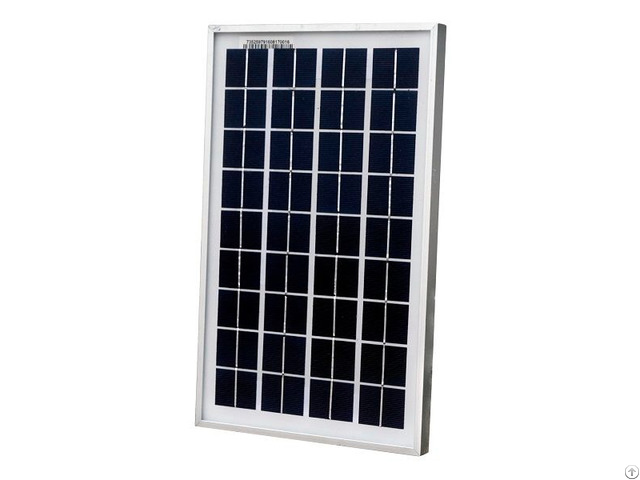

10w 12 Volt Polycrystalline Solar Panel - China

The Eco-Sources 10 Watt 12 Volt Polycrystalline Solar Panels are framed using heavy-duty anodized aluminum frames, providing exceptional panel rigidity.

Perfect for keeping 12-Volt batteries charged on RVs, Boats, ATVs, Cabins and any other situations.

The high-performance cells are encapsulated in EVA (ethylene-vinyl-acetate) & placed between high transparent low iron tempered glass & a durable TPT (tedlar-polyester-tedlar) backing to provide maximum protection from the most severe environmental conditions.

Features

1 - Advanced encapsulation material with multi-layered sheet laminations to enhance cell performance and provide a long service life.

2 - Bypass diodes minimize power drop caused by shade and ensure excellent performance in low-light environments.

3 - TPT back sheet ensures smooth performance over a long period of time.

4 - Guaranteed positive output tolerance (0-3%), withstands high winds (2400Pa) and snow loads (5400Pa).

5 - Corrosion-resistant aluminum frame for extended outdoor use, allowing the panels to last for decades.

6 - Anti-reflective, high transparency, low iron-tempered glass with enhanced stiffness and impact resistance.

7 - IP65 rated junction box provides complete protection against environmental particles and low-pressure water jets.

8 - Pre-drilled holes on the back of the panel allow for fast mounting and securing.

Specification

Related power 10W

Voc 20.6V

Vop 17.3V

Short circuit current (Isc) 0.69A

Working current (Iop) 0.58A

Output Tolerance ±3%

Temperate coefficient of Isc (010+/- 0.01 )%/ ℃

Temperate coefficient of Voc – (0.38 +/-0.01 )%/ ℃

Temperate coefficient of power Voc -0.47%/℃

Temperature range -40℃to +80℃

Frame Heavy duty aluminum

Kind of connection waterproof junction box, can be customized

Guarantee of power 90% within 10 years 80 within 25 years

Kind of glass and its thickness Low Iron, high transparency tempered glass of 3.2mm

SLA Battery Voltage 12V

Dimensions (L x W x H)mm 337 ×204 x 18(13.3*8.06*0.72)

Net Weight 0.85kgs (1.88lbs)

Application

Perfect for keeping 12-Volt batteries charged on RVs, boats, ATVs, cabins and any other situation where you need to keep a 12-Volt battery charged up and ready for use.
