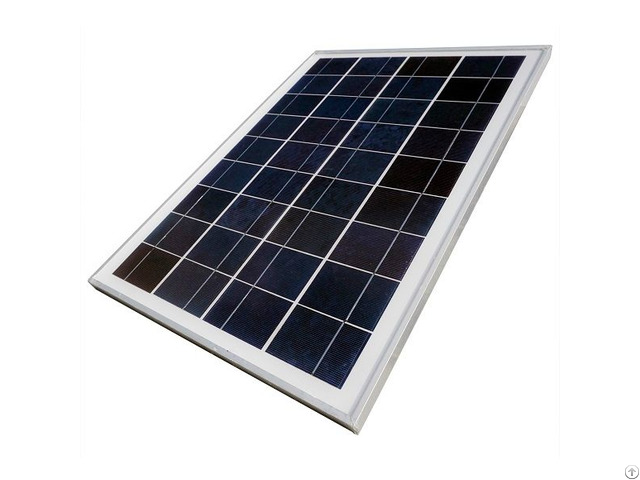

25w 12 Volt Polycrystalline Photovoltaic Pv Solar Panel Module - China

Eco-Sources 25W 12V polycrystalline solar panel is the key component to a system when going solar off-grid system.

These panels are relatively compact and are a breeze to set up.

Whether you are going camping in the mountains or taking a trip to the beach, this panel can be a great start to your off-grid systems such as marine, dry camp, RVs and other off-grid applications.

Features

1 - High modules conversion efficiency 25W poly solar panel provides up to 25W power.

if you have any quality problems, please contact us.

2 - Basic component for off-grid solar panel 12V/24V/36V/48V system, caravan, RVs, cars, boats, greenhouse solar systems.

3 - Withstand high wind (2400Pa) and snow loads (5400Pa);

4 - Lightweight anodized aluminum frame and reinforced safety and anti-reflection coated glass 3.2mm thick and waterproof IP-65 rated junction box which allows the panel lasts for a long time.

5 - Basic component for resident off-grid system widely used on marine, dry camp, garden watering and other off-grid applications.

Specification

Rated power 25W

Voc 22.41V

Vop 17.9V

Short circuit current (Isc) 1.54A

Working current (Iop) 1.4A

Output Tolerance ±3%

Temperate coefficient of Isc (010+/- 0.01 )%/ ℃

Temperate coefficient of Voc – (0.38 +/-0.01 )%/ ℃

Temperate coefficient of power Voc -0.47%/℃

Temperature range -40℃ to +80℃

Frame Heavy duty aluminum

Kind of connection waterproof junction box can be customized

Guarantee of power 90% within 10 years 80% within 25 years

Kind of glass and its thickness Low Iron, high transparency tempered glass of 3.2mm

SLA Battery Voltage 12V

Dimensions (L x W x H)mm 520*365*18(20.47*14.37*0 - 71in)

Application

Whether you are going camping in the mountains or taking a trip to the beach, this panel can be a great start to your off-grid system.

This panel has several uses including marine, dry camp, RVs and other off-grid applications.
