Eco Worthy 24v Solar Panel Deep Water Well Pump S Steel Submersible 20a Controller New - USA

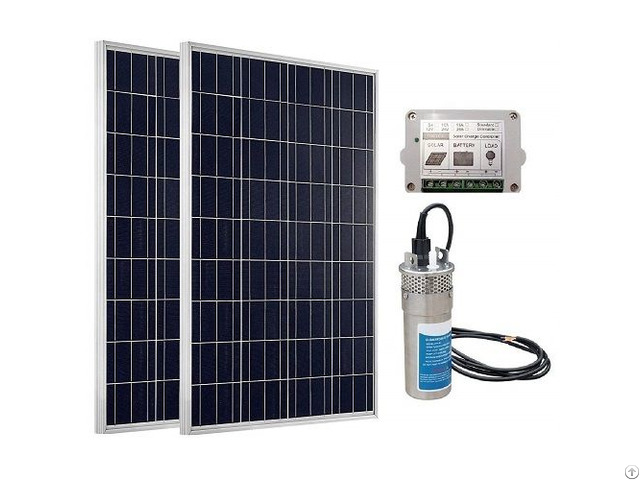

Package Included 2pcs 100W 12V Polycrystalline Solar Panel

1pc 24V stainless steel water pump

1pc 20A New Solar Charge Controller 100W 12V Polycrystalline Solar Panel ECO-WORTHY 's solar panel compose of multi-crystal solar cell with an efficiency of over 17%.

All ECO-WORTHY rigid solar panels are constructed using a tempered glass front, EVA pottant and a PVF backing to provide maximum protection from the most severe environmental conditions.

The entire laminate is framed in a heavy duty anodized aluminum frame to provide structural strength and ease of installation.

This translates to both more wattage per square foot and lower mounting structure cost.

1 - Ideal Daily Output: 500W (depending on the availability of sunlight)

Basic component for off-grid solar panel system, caravan, RV, boat, Green house solar panel system

2 - Easy Installation with pre-drilled hole.

each solar panel comes with 90cm 12awg cable with MC4 Male/Female quick connectors

3 - By-Pass Diode minimized the impact of shade

4 - Waterproof IP-65 Rated Junction Box: advanced water and dust proof level (complete protection against environmental particles and low-pressure water jets).

5 - Resistance to Salt Corrosion and Humidity

6 - Corrosion-resistant aluminum frame for extended outdoor use, allowing the panels to last for decades as well as withstand high winds (2400Pa) and snow loads (5400Pa), 7 - Lightweight anodized aluminum frame and reinforced Safety and anti-reflection coated glass 3.2mm thick (tempered + patterned) ECO-WORTHY 100W 12V Polycrystalline Solar Panel Specification

Rated power 100W

Voc 21.6V

Vop 18V

Short circuit current (Isc) 6.2A

Working current (Iop) 5.55A

Output Tolerance ±3%

Temperate coefficient of Isc (010+/-0.01 )%/ ℃

Temperate coefficient of Voc -(0.38 +/-0.01 )%/ ℃

Temperate coefficient of power Voc -0.47%/℃

Temperature range -40℃ to +80℃

Frame Heavy duty aluminum

Kind of glass and its thickness Low Iron, high transparency tempered glass of 3.2mm

SLA Battery Voltage 12V

Dimensions (L x W x H)mm 665*1000*35mm(26.16*39.4* 1.37 in)

Weight 24lbs(11Kg)

Warranty 5-year/95% efficiency rate

10-year/90% efficiency rate; 25-year/80% efficiency rate 5-year material and workmanship warranty

25-year transferable power output warranty
