Eco Worthy Wind Turbine Generator System With Controller For 12v 24v - USA

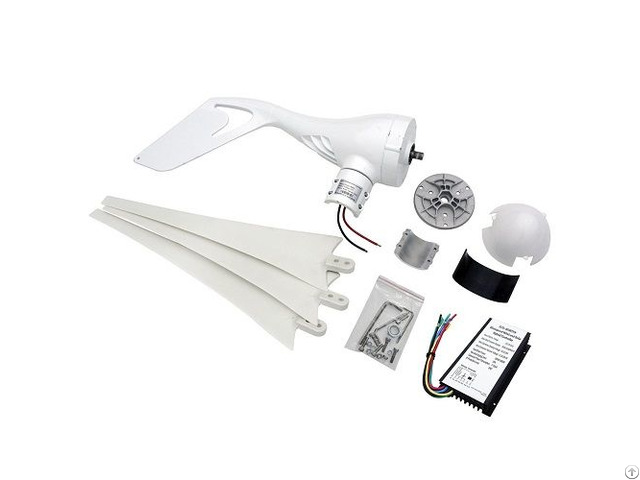

Package Included 1 x Wind Turbine Generator

1 x turbine hybrid controller (which can connect to solar panel & wind generator, and it auto work with 12V 24V)

3 x Blades

1 x Nose Cone

1 x Instruction Manual

1 set Screws and Nuts Check Instruction for the Wind-Solar Hybrid Controller Setting UK, Germany, Australia, China Stock Usually Ships in 3 to 5 Business Days ECO-WORTHY 400W 12V Off Grid Wind Turbine Generator System ECO-WORTHY 's Wind Turbine is a smart choice and affordable for remote homes and cabins in windy areas.

Electricity produced by wind generation can be stored in batteries for household use when needed.

Wind generators can be used alone, or they may be used as part of a hybrid system, in which their output is combined with that of photovoltaics.

Hybrid systems are especially useful for winter backup of home systems where cloudy weather and windy conditions occur simultaneously.

Features 1 - Max daily output at 1.4KW.

It also works when there is only the wind power or solar power, getting hybrid or single power.

2 - High-performance Nylon fiber blades by precision molding injection

3 - Low start-up/cut-in wind speed by unique electro-magnet design

4 - Protect from over-speed by blade aerodynamic elasticity

5 - High efficient and compact alternator With high-performance NdFeB permanent magnet

6 - With small moment generator of 0.08N.

M for low start wind speed

7 - Overspeed protection by special electrical design and aeroelastic blade

8 - Hybrid controller for wind turbine and solar panel with PWM function 12V/24V

9 - Aluminum housing design for good heat sink, lightweight and tough environment ECO-WORTHY 400W 12V Off Grid Wind Turbine Generator System Electrical Specification

Rated Power 400w

Battery Voltage DC12-24V

Start-up Wind Speed 2.5m/s(8'/s)

Rated Wind Speed 10.5m/S(35'/s)

Maximum wind speed 35m/s

Rated Rotate Speed 800r/min

Battery capacity 200AH-400AH

Control system Automatic fan dedicated controller

Inverter Pure sine wave inverter

Generator style Permanent-magento-phase A.

C

Fan blade quantity 3

Wind leaf material Carbon fibre composite

Rotor diameter 1.2M

Tower diameter Suggest more than 80 mm

Altitude of towe 4.5M-10M

Fan in the weight 8KG

Pole diameter Out diameter 7.4cm inner diameter 5.3cm

Packing specification 687*365*210mm(27"x14.4"x8 .

3")

Product Life 15 years

Warranty 1 year

Certification CE

Wind Controller Specification

Rated Voltage DC12-24V

Rated Wind Generator Capacity 400W/800W

Wind Generator Braking Voltage 14.5V/29V

Wind Generator Recover Voltage: 13.2V/26.4V

Rated Solar Power 500W/1000W

Max.

Discharging Current 20A

Battery overpressure protection 16.5V/33V(Close the load output)

Battery discharge protection 10.7V/21.4V(Close the load output)

Battery discharge recovery voltage 12V/25V(Restore the load output )

Quiescent Power Consumption 15mA

Ambient Temperature -35~+75℃

Dimensions(L x W x H): 150mm×87mm×28mm

IP Protection Level IP67
