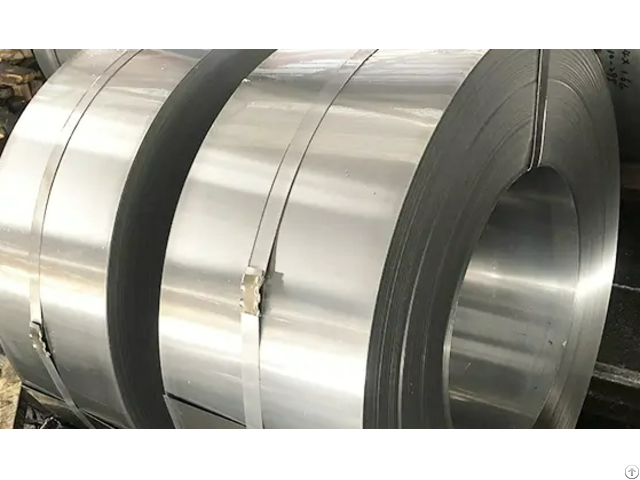

Gb 60si2mn Steel Coil Jis Sup6 Din 60si7 - China

60Si2Mn steel coil is a widely used silicon-manganese spring steel, which has high hardenability, good thermal processing performance, stable process performance, good comprehensive mechanical properties, decarburization resistance, high fatigue strength and anti-shock performance and so on.

JIS SUP6 / DIN 1.0909 / GB 60Si2Mn steel coil composition and more information as below.

GB 60Si2Mn Steel Coil Application

The application is decided by M2 steel chemical composition and properties.

It has high hardness, red hardness.

Good thermoplasticity and excellent toughness.

It is used to make tools that require has good wear resistance and toughness which can sustain large impact forces.

Such as pinion cutters, planers, milling cutters, turning tools, drill bits and etc 1.0909 60Si2Mn Steel Heat Treatment

60Si2Mn Steel Annealing

First heat to 740-770°C and allow sufficient time for the steel to

Heat thoroughly, then cool slowly in the furnace.

Spheroidizing annealing: Heating at 850 degrees, oil cooling and quenching, and short-time isothermal spheroidizing process (heating at 790 degrees for 25 minutes, quenching to 680 degrees and holding for 1 hour, furnace cooling to 500 degrees), can obtain ideal spheroidizing structure.

The quenching temperature of 60Si2Mn steel is normally 850-870 degrees, oil cooling.

60Si2Mn Steel Quenching

The quenching temperature of 60Si2Mn steel is normally and evenly heated to 830-870 degrees until it is completely heated.

60Si2Mn Steel Tempering

Tempering at 480-530°C, soaking in

Selected temperature and soak for at least one hour per 25 mm

Total thickness.

The tempering temperature depends on the hardness requirements of the mold parts, such as

Tempered at 400 degrees, hardness 46HRC;

Tempered at 500 degrees, hardness 40HRC;

Tempered at 600 degrees, hardness 34HRC.

The tempering performance is best matched between 150 and 160 degrees, and the tempering brittle zone around 300 degrees must be avoided.

For tools and molds with high toughness and good dimensional stability, the tempering temperature can be increased to about 250 degrees, and the hardness is 55~60HRC, which has good toughness.

GB 60Si2Mn Steel Coil Supply

We have our own cutting and processing equipment.

Specifications can be cut and customized according to your requirements.

We are a professional special steel stockist and supplier with a high-quality stand for many years.

As a professional 60Si2Mn steel coil supplier, please contacts us for any request of AISI 60Si2Mn/DIN 1.0909 steels materials.

Songshun Steel always with you.

Massive Stock

We keep a mass stock are over 20000 tons for various steel type, including steel round bar, steel sheet, alloy steel, carbon steel, stainless steel, mold steel, steel coil and etc.
