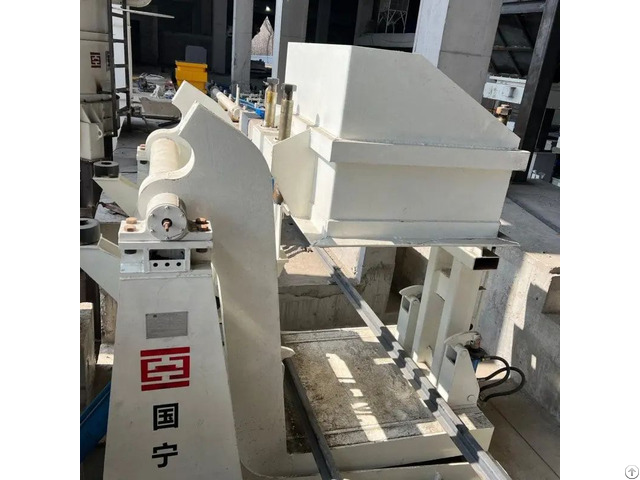

Bottom-turning hydraulic box turner machine

The hydraulic box flipping machine mainly consists of a flipping body, a base, a hydraulic cylinder, an oil circuit, an executing cylinder, and a box for the box flipping machine control.

Main functions and advantages

1 - The use of hydraulic energy to convert into mechanical energy has the advantages of stable operation, strong environmental adaptability, convenient maintenance, and simple operation.

2 - The tilting cylinder body and clamping cylinder hydraulic system are equipped with hydraulic locks, which enable the equipment to stop and start in real-time during operation, avoiding various dangerous situations caused by sudden shutdown due to power failure.

After the power failure is restored, the operation can be completed manually.

3 - The flipping body adopts a bottom clamping flipping box design, which is safer and more stable.

4 - Realizing online box flipping operation greatly saves the time required to lift the sand box off the operating line for box turnover operation without a box turnover machine.

5 - The control system is integrated into the operation control cabinet, and for the convenience of equipment operation, the control box can be placed nearby according to the equipment position.

Equipment performance and characteristics

The equipment adopts a double acting single rod piston type oil cylinder placed behind the flipping body, and the columns on both sides are connected to the flipping body through bearings, ensuring better stability during flipping, smoother operation, and more convenient installation.

The sand box operates to the flipping position, and the proximity switch feedback signal is sent to the electric control cabinet.

The clamping oil cylinder on the flipping body acts in place, the sand box is clamped, and the pump station outputs oil to the tilting oil cylinder.

The flipping body and the sand box are tilted 120 ° with the base bearing as the center, and the molding sand and casting slide diagonally to the sand receiving part of the sand treatment system, and the casting is produced; After the molding sand is cleaned, the pump station supplies oil in reverse, the flipping body returns to its original position, the clamping oil cylinder is released, and the sand box operates to proceed with the next flipping action.

Both the Hydraulic Mold Box Turning Device and the Bottom Turning Mold Handling Equipment utilize a hydraulic system to rotate sand boxes (mold boxes) in lost foam casting production lines.

These devices are ideal for heavy-load mold handling and are integral in the molding and casting preparation stages.

Guoning offers reliable and customizable equipment tailored to your specific production line layout and load requirements.

Both systems help reduce manual labor, increase safety, and improve overall production efficiency.
