Ball Joint Handrail - China

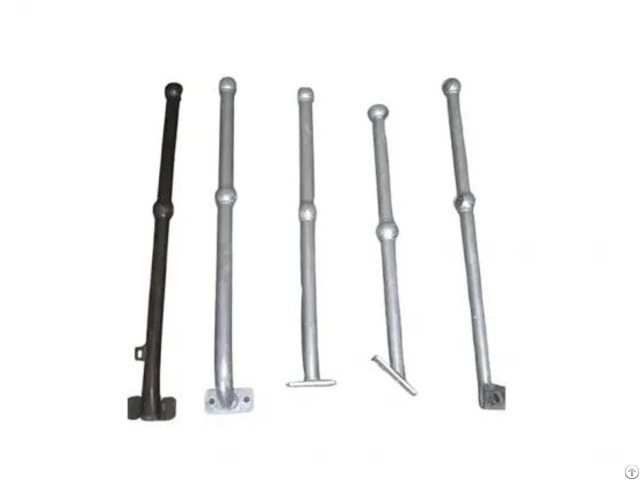

Ball Joint Handrail, also known as ball post, ball joint fence, ball post, ball post, etc., the production process includes welding the ball and post together.

The unique ball joint structure makes installation easy and the design flexible, suitable for a wide range of application scenarios.

1 - Material: Ball Joint Handrail rods are divided into ordinary carbon steel and stainless steel.

Carbon steel surface needs to be hot-dip galvanized or powder-coated to meet the color requirements of different environments .

Stainless steel needs to be pickled and polished to meet environmental protection requirements.

2 - Guardrail composition: column - handrail - railing - elbow - end cap - pipe seat - skirting board.

3 - Railing height: The height of a single rail is designed to be 1017mm for double rails and 1200mm for triple rails.

4 - Column spacing: There are four main types of column spacing: 1000, 1200, 1500 and 2000mm.

5 - Installation and connection methods: The installation and connection methods include welding on pre-buried iron or steel structures, installation on non-metallic ground with expansion bolts, and installation on steel structures with hexagonal bolts.

The connection between pipes and columns and pipes is welded with cores, and the corners are fixed with elbows.

There are many options for end connection methods, including welding, wall punching and insertion, using pipe seats, caps or blind hole columns, etc.

6 - Classification: According to the different use positions, the columns can be divided into vertical columns (widely used in platform protection), inclined columns (steel ladder handrails), and elbow columns (when the platform handrail conflicts with the diagonal brace).

7 - Packing method: plastic belt or steel belt.

8 - Specifications: In addition to the following standard sizes, we can also provide customized services for ball diameter, column diameter, handrail diameter and crossbar diameter according to customer specific needs.

1) There are three main heights: 1.017 meters, 1.2 meters and 1.5 meters.

2) The ball diameters mainly include 66mm\70mm, 76mm and 85mm.

3) The main column diameters are 48mm, 51mm, 42.3mm and 38.1mm.

4) The handrail diameters mainly include 48mm, 51mm, 42.3mm and 38.1mm.

5) There are four types of crossbar diameters: 42.3mm, 51.0mm, 26.8mm, and 32.0mm.

6) There are three main types of horizontal bars: 1, 2 and 3 - For detailed inquiries or project consultation, please contact us today!

Customized Service

We provide comprehensive custom services, including but not limited to:

1 - Material selection: Ball Joint Handrail can choose the most suitable material according to customer needs.

2 - Color and Surface Treatment: Ball Joint Handrail surface spray treatment, a variety of color and surface treatment options to suit different environments and aesthetic requirements.

3 - Custom Size: Ball Joint Handrail can be fully customized to customer site dimensions, ensuring a perfect fit.

4 - Design Services: Provide professional design support to help customers realize their specific design vision.
