There are many ways to fix steel gratings, each of which has its specific application scenarios and advantages and disadvantages.

Commonly used steel grating fixing methods are welding fixing and mounting clamp fixing.

Our design team is not limited to providing the following methods, and can specify special steel grating fixing solutions according to special scenarios.

Steel Grating Accessories – Secure & Reliable Fixing Solutions

Shunbo Steel Grating offers a comprehensive range of steel grating accessories for secure installation and long-term durability.

Whether you require welding fixation, mounting clips, or specialized fasteners, we provide reliable solutions tailored to your project needs.

Common Steel Grating Fixing Methods

1 - Welding fixation

1 - Applicable scenarios: Suitable for permanent parts that do not need to be disassembled, especially for occasions with extremely high requirements for the stability of steel gratings, such as heavy industrial platforms, shelf platforms in large warehouses, etc.

When the steel grating is in complex working conditions such as vibration and impact for a long time, welding fixation is also a better choice.

However, it is relatively difficult to disassemble the steel grating after welding fixation.

If part of the steel grating needs to be repaired or replaced later, it may cause certain damage to the surrounding structure.

bearing rod of each corner of the steel grating, with a weld length of not less than 20 mm and a height of not less than 3 mm.

If the steel grating is often stepped on by heavy objects or the steel grating is long, the number of welding points can be appropriately increased.

Considering the area with a high probability of disassembly in the later stage, it can be fixed by electric welding.

After welding, in order to prevent rust on the welding part, it is necessary to apply two coats of zinc-rich silver powder paint for anti-rust treatment.

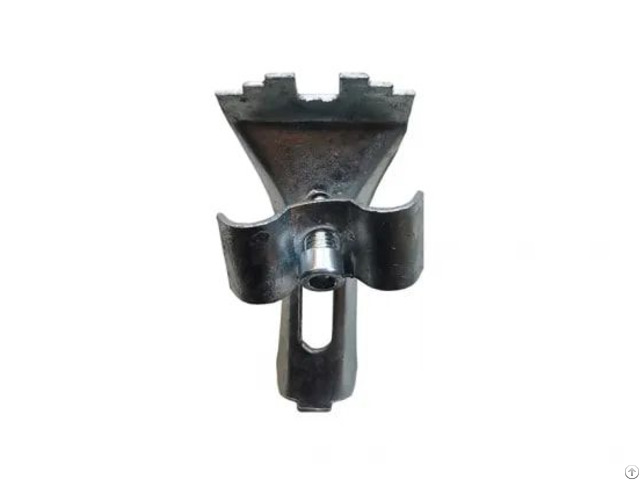

2 - Fixing with mounting clip

1 - Applicable scenarios: The installation clamp fixing method is highly flexible and is suitable for occasions where the steel grating needs to be frequently disassembled and reinstalled, as well as scenarios where there are requirements for no welding spots or weld scars on the support beam, such as the maintenance platform of the sewage treatment plant, the operating platform of the chemical plant, etc.

Made of hot-dip galvanized carbon steel or stainless steel, it is also suitable for places with high requirements for appearance, because the installation clamp fixing will not leave obvious welding marks on the surface of the steel grating like welding.

Note that the installation clamp fixing should be checked frequently to prevent the installation clamp from loosening and falling off.

It is best to weld or add rubber pads to the steel grating close to the vibration source.

2 - Operation method: First, select the appropriate mounting clamp according to the size of the steel grating and the type of supporting structure.

There are many types of mounting clamps, including type A (suitable for fixing a single steel grating), type B (for connecting and fixing adjacent steel gratings), etc.

Finally, place the mounting clamp on the bearing rod of the steel grating, and after determining the position, tighten the mounting clamp with bolts and nuts.

During the tightening process, pay attention to make the mounting clamp evenly clamp the bearing rod to avoid excessive local force.

Finally, check the fixing of the mounting clamp to ensure that the steel grating is firmly installed and there is no looseness.
