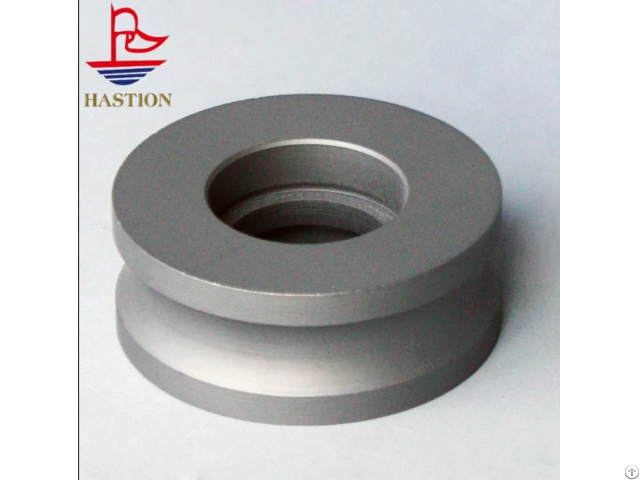

Large Diameter Titanium Carbide Hard Alloy Guide Wheels - China

The guide wheel features precisely machined installation holes, with a fit clearance between the shaft and hub controlled within the range of 0.005–0.01 mm.

This ensures smooth rotation without vibration, thereby enhancing guiding accuracy.

The guide wheel also offers low maintenance costs and does not require frequent lubrication; regular cleaning of surface contaminants is sufficient, making it ideal for continuous operation in automated production lines.

In wire mesh manufacturing, the guide wheel ensures uniform mesh hole size, maintaining dimensional errors within 5%, which meets the stringent requirements of filter material specifications.

This type of guide wheel exhibits excellent corrosion resistance.

It can remain free from rust for more than five years in humid environments containing chloride ions (e.g., factories located near coastal areas), whereas conventional steel guide wheels typically last only three months under similar conditions.

The guide wheel has a dense internal structure with a porosity of less than 0.1%, effectively preventing coolant infiltration and subsequent internal cracking.

During the copper tube drawing process, the friction coefficient between the guide wheel and the copper tube is as low as 0.08 - This significantly reduces surface scratches on the copper tube and increases the product pass rate from 85% to 99%.

Company Contact:

• Posted By: Zhuzhou Hastion High-Tech Materials Co.,Ltd.

• Phone: +86-731-22891182

• Address: Small And Medium-Sized Enterprises Pioneer Park, Yanling County, Zhuzhou City,Hunan Province, China, Zhuzhou , Hunan , China

• Email:

• Website: https://www.hastion.com/

• Business Description: Our factory is in yanling, Zhuzhou of Carbide centralized place,which occupies an area of 60,000 square meters and a planned factory area of 50,000 square meters.

  Now HASTION have 2 different

  productions lines, one is the raw material metal compound and elemental powder(TiC/Cr3C2/VC/NbC/Z rC/HfC/(W,Ti)C/(Ta,Nb)C and so on), the other one is

  the titanium carbide cermet rod/insert/plate/customiz ed shape/guide roller and so on(belong to the steel-bonded cemented carbide), until now our products have been sold to many countries, like the Turkey, Belgium, Australia, Japan, Korea, Vietnam, India, Pakistan, Thailand and etc.
