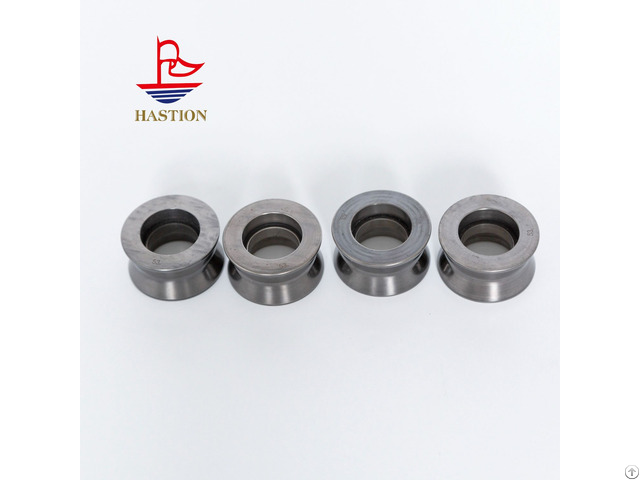

High Temperature Resistant Cemented Carbides Titanium Carbide Guide Wheel - China

Carbide titanium carbide guide wheel is the key guiding parts in the production of wire and pipe, which is made of high purity titanium carbide and cobalt bonding phase sintered by powder metallurgy, with surface hardness as high as HRC88, and abrasion resistance is more than 50 times that of steel guide wheel.

Its roundness error is controlled within 0.002mm, ensuring that the wire in high-speed drawing (speed up to 100m/s) when running smoothly to avoid jitter or offset.

In the production of stainless steel wire, the use of the guide wheel can make the wire surface roughness from Ra1.6μm to Ra0.4μm, significantly improving product quality.

The surface of the guide wheel can be specially treated according to the demand, such as after spraying diamond coating, the abrasion resistance is increased by 30%, which is suitable for processing high hardness alloy wire.

Its weight is 30% lighter than steel guide wheels of the same size, which reduces the load on the drive motor and lowers energy consumption by more than 15%.

In the production of precision tubes, the groove accuracy of the guide wheel reaches IT3 level, which can ensure that the tolerance of the outer diameter of the tubes can be controlled at ±0.01mm, meeting the high precision requirements in the fields of medical treatment, aviation and so on.

Company Contact:

• Posted By: Zhuzhou Hastion High-Tech Materials Co.,Ltd.

• Phone: +86-731-22891182

• Address: Small And Medium-Sized Enterprises Pioneer Park, Yanling County, Zhuzhou City,Hunan Province, China, Zhuzhou , Hunan , China

• Email:

• Website: https://www.hastion.com/

• Business Description: Our factory is in yanling, Zhuzhou of Carbide centralized place,which occupies an area of 60,000 square meters and a planned factory area of 50,000 square meters.

  Now HASTION have 2 different

  productions lines, one is the raw material metal compound and elemental powder(TiC/Cr3C2/VC/NbC/Z rC/HfC/(W,Ti)C/(Ta,Nb)C and so on), the other one is

  the titanium carbide cermet rod/insert/plate/customiz ed shape/guide roller and so on(belong to the steel-bonded cemented carbide), until now our products have been sold to many countries, like the Turkey, Belgium, Australia, Japan, Korea, Vietnam, India, Pakistan, Thailand and etc.
