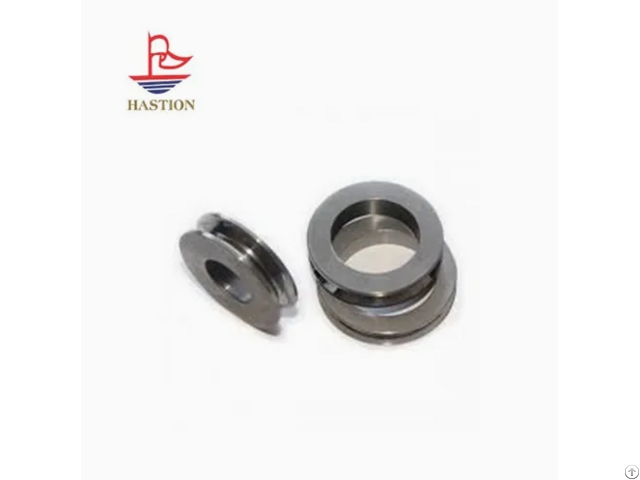

High Rigidity Titanium Carbide Hard Alloy Guide Wheels - China

Hard alloy titanium carbide guide wheels exhibit excellent impact resistance.

In the event of sudden wire tensioning or breakage, these wheels are less prone to cracking or deformation, thereby reducing the likelihood of unplanned equipment shutdowns.

They possess superior thermal conductivity, enabling rapid dissipation of heat generated by friction.

This ensures that the operating temperature of the guide wheel remains below 80°C, preventing thermal annealing of the wire.

During the production of spring steel wire, the use of these guide wheels maintains the straightness deviation of the wire within 0.5 mm/m, significantly enhancing the fatigue resistance of the resulting springs.

Hard alloy titanium carbide guide wheels are critical guiding components in wire and tube manufacturing processes.

They are fabricated through powder metallurgy sintering using high-purity titanium carbide and cobalt as a binder phase.

These guide wheels have a surface hardness of up to HRC88, with wear resistance exceeding 50 times that of conventional steel guide wheels.

Their roundness deviation is precisely controlled within 0.002 mm, ensuring smooth wire movement during high-speed drawing (up to 100 m/s) and preventing vibration or lateral displacement.

In stainless steel wire production, the application of these guide wheels can reduce the surface roughness of the wire from Ra1.6 μm to Ra0.4 μm, thereby markedly improving the overall surface quality and performance of the final product.

Company Contact:

• Posted By: Zhuzhou Hastion High-Tech Materials Co.,Ltd.

• Phone: +86-731-22891182

• Address: Small And Medium-Sized Enterprises Pioneer Park, Yanling County, Zhuzhou City,Hunan Province, China, Zhuzhou , Hunan , China

• Email:

• Website: https://www.hastion.com/

• Business Description: Our factory is in yanling, Zhuzhou of Carbide centralized place,which occupies an area of 60,000 square meters and a planned factory area of 50,000 square meters.

  Now HASTION have 2 different

  productions lines, one is the raw material metal compound and elemental powder(TiC/Cr3C2/VC/NbC/Z rC/HfC/(W,Ti)C/(Ta,Nb)C and so on), the other one is

  the titanium carbide cermet rod/insert/plate/customiz ed shape/guide roller and so on(belong to the steel-bonded cemented carbide), until now our products have been sold to many countries, like the Turkey, Belgium, Australia, Japan, Korea, Vietnam, India, Pakistan, Thailand and etc.
