Correct W6mo5cr4v2 Quenching Process For M2 High Speed Steel Tools And Dies - China

W6Mo5Cr4V2 quenching is the critical heat treatment step that unlocks the full performance of this tungsten molybdenum high speed steel, equivalent to AISI M2, DIN 1.3343 and JIS SKH51 - A correct quenching cycle gives 63-65 HRC working hardness, while a wrong one causes brittleness or soft tools.

Correct W6Mo5Cr4V2 quenching procedure: 1 - Preheating before quenching

- First preheat at 650 C to equalize core and surface temperature

- Second preheat at 850 C to prepare for austenitizing

- Slow heating prevents thermal cracking in large or complex tools 2 - Austenitizing (quenching) temperature

- Standard range: 1210-1230 C

- Thin tools: 1200-1210 C to keep fine grain

- Heavy duty tools needing maximum red hardness: up to 1230 C

- Never exceed 1250 C, grain coarsening destroys toughness 3 - Soaking time

- About 20-25 seconds per millimeter of section thickness

- Uniform salt bath or vacuum furnace gives the most accurate control 4 - Quenching media after austenitizing

- Oil quenching: suitable for simple shapes and smaller sections

- Salt bath at 500-550 C then air cool: best for complex tools, minimizes distortion

- Vacuum furnace with 5-6 bar nitrogen: cleanest surface, lowest distortion, modern standard

- Air cooling: only for very thin sections 5 - Tempering immediately after W6Mo5Cr4V2 quenching

- Start when the tool cools to about 50-70 C, never leave overnight

- Triple temper at 540-560 C, 1-2 hours per cycle

- Each cycle transforms retained austenite and builds secondary hardness

- Final working hardness: 63-65 HRC

- Optional cryogenic treatment between cycles improves wear life and dimensional stability Common quenching defects and their causes:

- Soft spots: slow quenching or decarburized surface

- Cracking: too fast quenching of complex shapes, or tempering delayed too long

- Low hardness: insufficient austenitizing temperature or soaking time

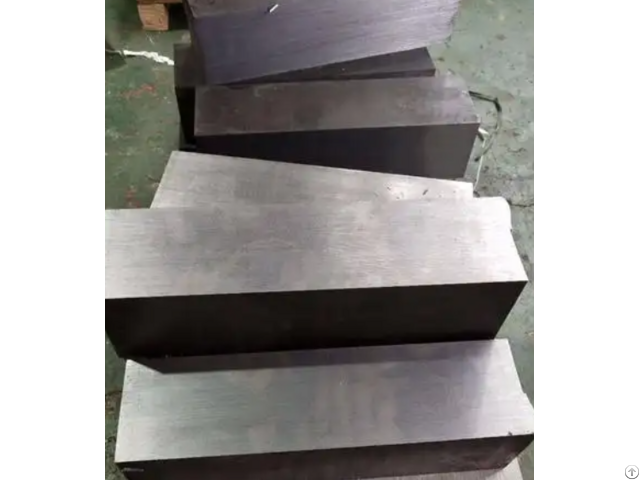

- Brittle tools: overheating above 1250 C or too few tempering cycles Songshun supplies W6Mo5Cr4V2 in annealed bar, plate and block with full heat treatment guidance from our engineer team.

Every shipment includes EN 10204 3.1 certificates and ultrasonic test records.
