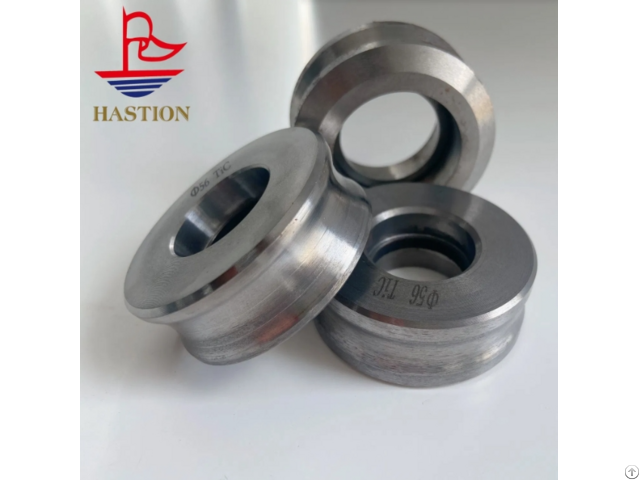

Anti Oxidation And Deformation Titanium Carbide Guide Wheel - China

The surface of the guide wheel can be specially treated according to requirements, such as by applying a diamond coating, which further improves wear resistance by 30% and makes it suitable for processing high-hardness alloy wire.

It is 30% lighter than steel guide wheels of the same size, reducing the load on the drive motor and lowering energy consumption by more than 15%.

In precision tube production, the groove profile accuracy of the guide wheels meets IT3 grade standards, ensuring that the outer diameter tolerance of the tubes is controlled within ±0.01mm, meeting the high-precision requirements of industries such as medical and aerospace.

Hard alloy titanium carbide guide wheels are critical guiding components in wire and tube production.

They are manufactured using high-purity titanium carbide and cobalt bonding phases through powder metallurgy sintering, with a surface hardness of up to HRC88, offering wear resistance over 50 times that of steel guide wheels.

The roundness error is controlled within 0.002mm, ensuring smooth operation of wire during high-speed drawing (speeds up to 100m/s) and preventing vibration or deviation.

In stainless steel wire production, using this guide wheel reduces surface roughness from Ra1.6μm to Ra0.4μm, significantly improving product quality.

Company Contact:

• Posted By: Zhuzhou Hastion High-Tech Materials Co.,Ltd.

• Phone: +86-731-22891182

• Address: Small And Medium-Sized Enterprises Pioneer Park, Yanling County, Zhuzhou City,Hunan Province, China, Zhuzhou , Hunan , China

• Email:

• Website: https://www.hastion.com/

• Business Description: Our factory is in yanling, Zhuzhou of Carbide centralized place,which occupies an area of 60,000 square meters and a planned factory area of 50,000 square meters.

  Now HASTION have 2 different

  productions lines, one is the raw material metal compound and elemental powder(TiC/Cr3C2/VC/NbC/Z rC/HfC/(W,Ti)C/(Ta,Nb)C and so on), the other one is

  the titanium carbide cermet rod/insert/plate/customiz ed shape/guide roller and so on(belong to the steel-bonded cemented carbide), until now our products have been sold to many countries, like the Turkey, Belgium, Australia, Japan, Korea, Vietnam, India, Pakistan, Thailand and etc.
