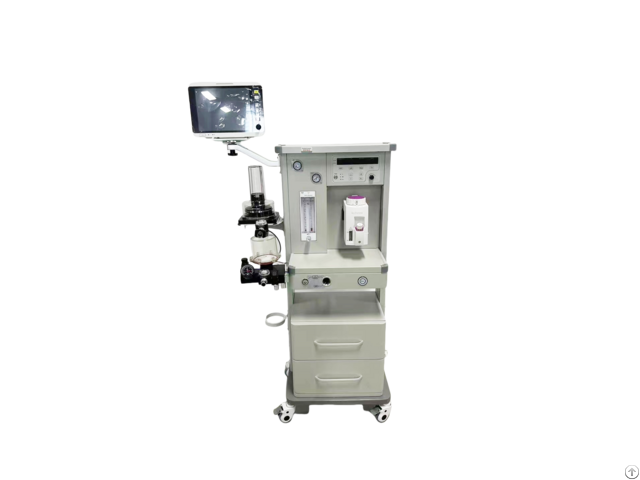

Medical Halothane Evaporator Ex Factory Price Anesthesia Machine - China

Application: Dolphimed delivery the Anesthesia Machine that makes a good performance in Intensive Care Units (ICU), operation room, anesthesiology department and other departments.

From high to low acuity, simple to complex cases, pediatric to geriatric patients, Dolphinmed Medical Anesthesia System offers you wide choices that you need in ventilation, monitoring and technique.

Feature: More convenient operating and display systems for clinical operations, suitable for a wide range of anesthesia at adult, pediatric and infant Comprehensive Safety&Alarm system, make sure the operation accuracy and stability 8 inch TFT display with touch screen, shuttle knob design, quick and efficient operation Integrated absorber design with good cable management solution, convenient to discharge and install timely.

Powerful ventilation mode meet all complex clinical requirement Three levels alarm system, visual and sound alarm information.

The core components are imported from top international and original, and the industrial control chip is chosen High precious sensor and valve technology make sure the pressure, flow and volume monitor and control at high safety, stability and precision High precious anesthesia vaporizer with temperature, flow and pressure compensation Top-light system design provide more good vision Built-in backup battery provide the emergency power supply to the unit.

Low O2 pressure alarm and N2O cut-off protection.

Technical Specifications

Main Unit Parameter Description Anesthesia Vaporier Temperature, flow and pressure compensation Flow range: 0.2-15L/min Temerature range: 15-35℃ Agent: Isoflurane, Seveflurane, Halothane and Enflurane Fill type: Pour-fill, Easy-fill, Key-fil CO2 Absorber Twins canister, 2 L volume for sadalime, wth no-return respiration valve and inspiraition valve, avoid gas back flowing.

Flow meter Mechanical flowmeter O2, N2O and air 1*O2 tubes: 0-1L/min, 1-10L/min 1*N2O tubes: 0-1L/min, 1-10L/min 1*Air tubes: 0--10L/min(optional ) N2O will be auto cut when O2 supply failure O2 and N2O linkage device, keep O2 not low than 25% Bellow Adult bellow and pediatric bellow.

Gauge TWo gas supply pressure gaugage( O2, N2O ) Three gas working prssure gauage (O2, N2O and air)(optioanal) One gas airway pressure gauge Gas supply pressure (O2, N2O ) air(optioanl) 0.27-0.55Mpa Mount type Twins selectatec Bar or cagemout type Working mode Semi-open, Semi-closed, Closed or Open sytem O2 Flush 25-75LPM Gas switch Control gas source with starting or stoping Yokes System(optional) O2&N2O Pin indexed, backup gas will auto working when central gas supply fail AGSS Optional Electricity 110-240V, 50/60HZ, Power consumation≤50W
