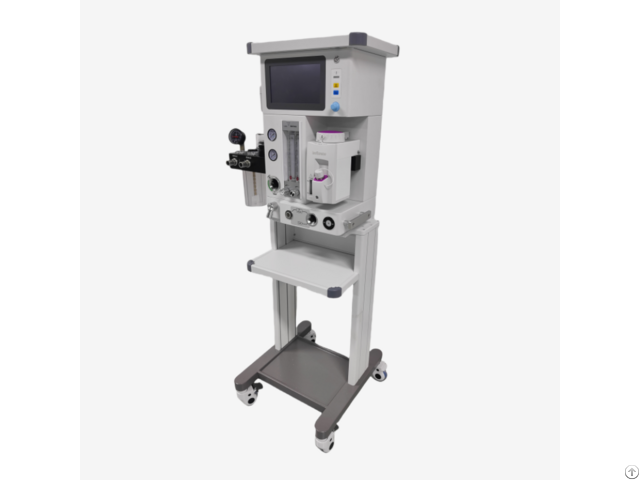

Touch Screen Anesthesia Workstation For Veterinary Use - China

Technical Specification Vet Anesthesia ventilator Respiration mode PCV, VCV, SPONT, DEMO Bellow Big animal t: 300-1500ml, small animal: 0-300ml Screen 9 inches touch screen Waveform Pressure, Flow, Volume Loop PV, PF, FV Tidal volume Mechanical control: 20-1500ml Manual control: 5-1500ml BPM 1-100bpm I: E 9.9: 1to1: 9.9 Inspiratory time 0.1s-10.0s Apnea 0-50% PEEP Off, 3-20cmH2O Pressure support 5-60cmH2O Flow trigger 0.5-20L/min Pressure trigger -1~20cmH2O PSV Inspiratory terminal level 25% Monitoring Tidal volume, breathing rate, Spontaneous breathing rate, I: E, Spontaneous minute ventilation volume, Minute ventilation peak airway pressure, Average airway pressure, PEEP, Inspiratory platform pressure Alarm parameters Tidal volume, Minute ventilation volume, Frequency, Airway pressure, Continuous airway pressure, Negative pressure alarm, Apnea alarm, Air supply pressure failure alarm, Power supply alarm, Low battery alarm, Battery exhaustion alarm, Oxygen battery failure alarm, FIO2(optional), FICO2(optional) Power supply 220V±10%, 50HZ±1% Vet Main unit Ventilation mode Open, Closed, half-closed, half-open Drive mode pneumatically and electrically Application 0.5-100kg animal Anesthesia Vaporizer Isoflurane, Sevoflurane, Halothane Oxygen Flush 25L/min~75L/min Gas source pressure Oxygen 0.25Mpa~0.65Mpa Trolley High-quality aluminum alloy profile, with storage frame and special interface for exhaust gas emission Flowmeter Oxygen flow meter for animals, Scale range: 0~5L/min CO2 Absorber Sodium Lime Tank Capacity 500ml-700ml Absorber The animal-specific integrated circuit can be sterilized at high temperature and high pressure at 134 ℃.

The dedicated interface can be connected to an open circuit, suitable for low-flow small animals.

Valve piece Visible ceramic valve piece, easy to observe animal breathing.

Pop off valve Directs the waste anesthetic gas from the machine to a scavenging system.

In the completely open position, the pop-off valve will release pressure at 2 cm H2O, while maintain a constant passive volume in the breathing bags.

Other advantage Strong air tightness, reduce airway resistance;Design of quick replacement of sodium lime Canister Anesthesia Vaporizer Concentration scope Isoflurane: 0.2%~5% Sevoflurane: 0.2%~8% Flow rate scope 0.2L/min~15L/min Anesthetic capacity Dry : 340ml Wet : 300ml Mounting type Selectatec or Cagemout
