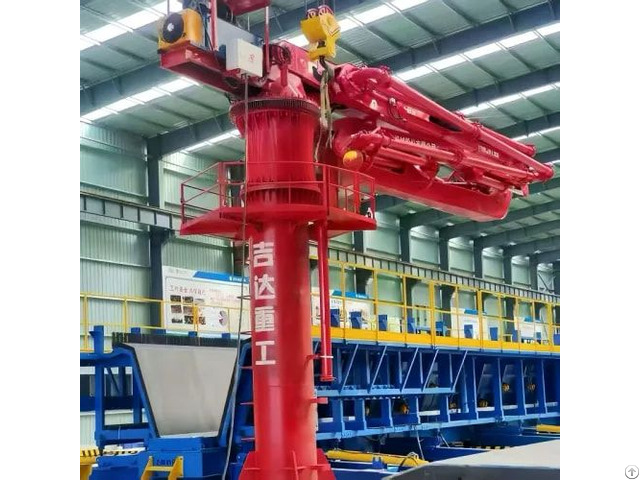

Stationary Placing Boomsupplier - China

Max.

horizontal reach 17 / 19 / 21 / 24 / 28 / 32 / 33 m

A Stationary Placing Boom is a fixed, non-mobile piece of construction equipment designed to precisely distribute materials like concrete over a designated area.

Technical Considerations:

Boom Sections: 3–5 articulated segments for flexibility.

Output Capacity: Varies by model (e.g., 50–150 m³/hour).

Power Source: Electric or diesel-driven pumps, depending on site requirements.

In summary, a Stationary Placing Boom is a critical tool for efficient, large-scale concrete placement in constrained or complex environments, offering precision and stability where mobile units fall short.

STATIONARY PLACING BOOM

Model HGY-17 HGY-21 HGY-24 HGY-28 HGY-32

Horizontal​ 17m 21m 24m 28m 32m

Rotation angle 360°

Elevationangle 2-84.4°

Outpu​t 5.5 7.5 15 15 22

Hydraulic pressure​​ 22 24 26 26 28

Power 380V 50HZ

Length hose 3

Pipe diameter DN125

Mode of operatton Radio remote/Panel control

Driving mode Hydraulic

Structure of the Stationary Placing Boom

A Stationary Placing Boom consists of a rigid, articulated boom with multiple folding or telescoping sections.

It is typically mounted on a stationary base to ensure stability during operation.

These booms are designed for fixed-location use and are equipped with hydraulic systems that allow them to extend both horizontally and vertically, making them ideal for construction sites with limited space, such as high-rise building areas.

Key Advantages of the Stationary Placing Boom

Reach: One of the main advantages of the Stationary Placing Boom is its impressive reach.

These booms can extend horizontally up to over 33 meters, making them especially useful for high-rise construction or projects that require concrete placement over a significant horizontal distance.

The actual reach can be customized according to project requirements.

Precision: The Stationary Placing Boom enables precise concrete placement directly into formwork, reducing spillage and waste.

Stability: The stationary design of the Stationary Placing Boom minimizes vibrations during operation, enhancing safety in dense or complex construction sites.

Stability is especially important when dealing with large, heavy loads or in environments where high precision is required.

Common Applications of the Stationary Placing Boom

High-Rise Concrete Pouring: The Stationary Placing Boom is particularly suitable for high-rise buildings, where traditional concrete placement methods cannot reach the upper floors.

Its extended boom arm makes it an ideal solution for pouring concrete into elevator shafts, shear walls, and floor slabs.

Industrial Facilities: Large-scale industrial facilities that require continuous, large-volume concrete placement can benefit from using a Stationary Placing Boom.

It is reliable and cost-effective for long-term projects where space and time are critical.

Comparison to Mobile Boom Pumps

Mobility Trade-off: While the Stationary Placing Boom lacks the mobility of truck-mounted boom pumps, it excels in long-term, fixed-location projects.

Once installed, it provides a stable, continuous source of concrete delivery, which is particularly advantageous for large and high-rise construction projects.

Cost-Effectiveness: The Stationary Placing Boom has proven to be more cost-effective than mobile boom pumps.

Since it does not require frequent relocation, maintenance, or fuel consumption like truck-mounted systems, its operational costs are lower for prolonged use.
