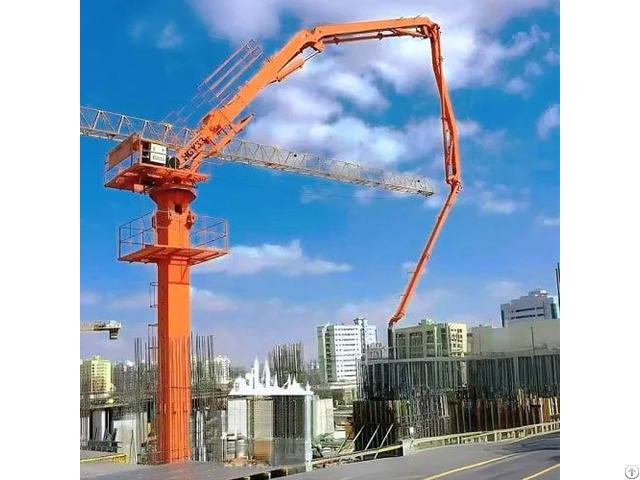

Floor Fixed Self Climbing Placing Boom - China

Max.

horizontal reach 17 / 21 / 24 / 28 / 32 / 33 m

This concrete placing boom represents an advanced construction solution ideally suited for various concrete structures including high-rise buildings, bridges, foundations, and other architectural works.

Its integrated self-climbing system significantly enhances operational efficiency in vertical construction projects while ensuring superior concrete placement quality and substantial reduction in labor requirements.

Our Self-Climbing Concrete Placing Boom is an advanced, hydraulic-driven auxiliary equipment designed to significantly enhance concrete placement efficiency in high-rise and large-scale construction projects.

Engineered for seamless integration with stationary concrete pumps and truck-mounted pumps, this equipment is ideal for expanding the pouring range across multiple floors during building construction.

With models ranging from 17m to 33m placing radius, our self-climbing concrete placing boom offers flexible configurations to meet diverse project requirements.

Whether installed in elevator shafts or directly on building floors, the boom utilizes a hydraulic self-climbing system to ascend alongside rising floor levels—eliminating the need for manual disassembly or crane repositioning.

Structural Composition: The system comprises:

◈Primary tower structure

◈Automated climbing mechanism

◈360° slewing drive unit

◈Dual-level support base (upper/lower pedestals)

◈Multi-articulated boom assembly

◈Hydraulic power pack

◈Intelligent control system

Boom System Specifications: The tri-sectional boom assembly features robust box-type structural members hydraulically actuated for precision folding/unfolding operations.

Through coordinated articulation and rotational movement (210° typical working range), the system achieves comprehensive coverage of all construction zones within its operational radius.

Vertical Climbing Capability: Utilizing its hydraulic climbing mechanism, the equipment ascends through pre-engineered floor penetrations in synchronization with building progression.

Maximum placement elevation is determined by the coupled concrete pump's pressure capacity.

Safety-Enhanced Hydraulic System:

✮Pressure relief valves: Protect against system overloads

✮Double-lock hydraulic cylinders: Ensure position retention safety

✮Rotary motion limiter: Prevents uncontrolled boom oscillation

✮Fail-safe braking system: Complies with industrial safety standards

Operational Advantages:

1 - Enhanced placement accuracy through computer-assisted positioning

2 - Cycle time reduction through automated climbing functionality

3 - Reduced manual intervention in vertical transportation

4 - Optimized concrete consolidation with controlled placement rates

5 - Adaptive configuration for complex architectural geometries
