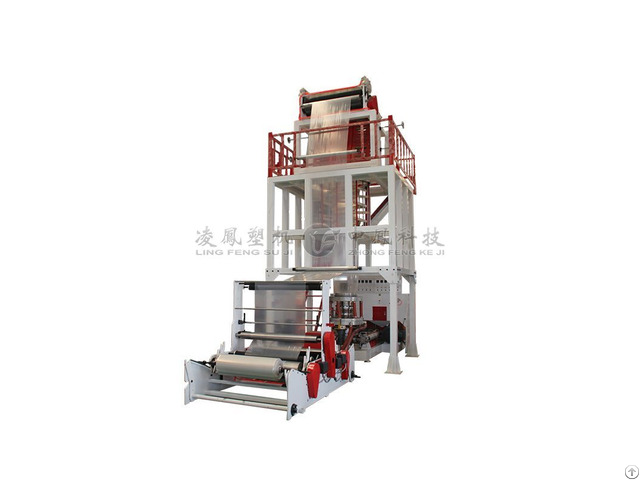

High Speed LDPE Double Screw ABA Three Co-Extrusion Film Blowing Machine

Feature and Advantage

Feature and Advantage: high yield, energy saving, stable, low noise, labor saving, less waste, the film is bright, smooth, feel good

At present, in domestic and foreign markets where T-shirt bag production has become extremely competitive, film producers are now replacing their existing single screw extruders with ABA 3 layer co-extrusion blown film machines, mainly to save production cost.

Another advantage of the ABA machine is that the 3 layer film that it produces is 30% stronger than film produced by single layer extruder.

The ABA machine is also much more economic comparing to an ABC three layer machine as it has one extruder less.

Technology Parameter of Double Screw Film Blowing Machine

Model No.

LF-ABA50 LF-ABA55 LF-ABA60 LF-ABA65

Suitable Material LDPE/HDPE LDPE/HDPE LDPE/HDPE LDPE/HDPE

Screw Quantity(pc) 2 2 2 2

Die Head Quantity (pc) 1 1 1 1

Screw Diameter(mm) 50 55 60 65

Max Screw Speed(r/min) 80 80 80 80

Traction Shaft Length(mm) 650/800 650/800 1100/1300/1500 1100/1300/1500

Max Film Width (mm) 570/700 570/700 1000/1200/1400 1000/1200/1400

Film Thickness(mm) 0.01-0.1 0.01-0.1 0.01-0.1 0.01-0.1

Max Extrusion(kg/hr) 50 70 90 110

Ratio of Length to Diameter(mm) 31: 1 31: 1 33: 1 32: 1

Die head diameter 290 290 290 or 320 290 or 320

Extruder Power(kw) 11x2 11x2 or 15x2 15x2 or 18.5x2 18.5x2 or 22x2

Traction Motor Power(kw) 2.2 2.2 2.2 2.2

Heating Device Power(kw) 29.4 31.6 34.6 34.8

Winder Motor Power(kw) 2.2 2.2 2.2 2.2

CNC Accuracy 1000g/+1.5g 1000g/+1.5g 1000g/+1.5g 1000g/+1.5g

Max winding diameter(mm) 1000 1000 1000 1000

Overall Dimension(LxWxH mm) 6500x2500x6200 6500x2500x6200 6500x2900x6200 6500x3765x6200

Total Weight(kg) 4500 5000 5400 5400

Electric Consumption(kw/T) 465 458 448 363
