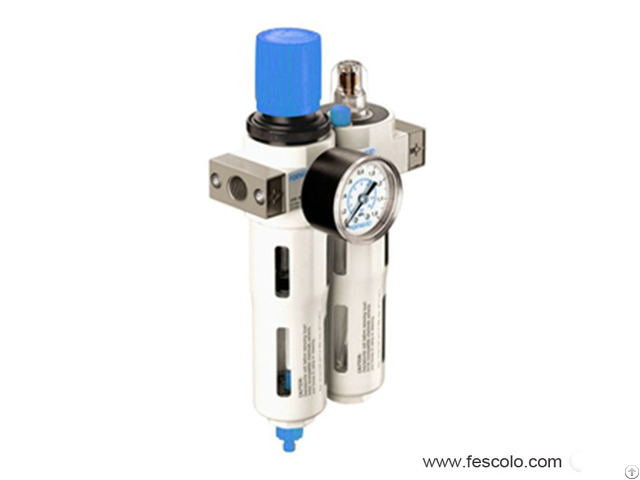

Filter&Regulator and Lubricator

Characteristics:

1) The series OU is consisted of OFR and OL, each unit can be ordered separately.

2) The OF with water separate cleans the compressed air of fluid oil, condensation and dirt particles.

For special application, the standard 40µm filter element may easily be replaced by a 5µm filter element.

3) The OR maintain imputting constant operating pressure despite fluctuation in line pressure&the amount

of air consumed.

4) The proportional lubricator adds a regulated quantity of oil to the filtered air.

The oil-mist content proportional to the flow and oil can be added during operation.

The oil drip rate is controlled by the adjustable bolt.

Normally, 1to 12 drops /1000L of the air is sufficient.

5) Different thread type can be offered according to customers' requirements, e.

g: PT, NPT etc.

Boby size MINI MIDI MAXI

Model OU-MINI-1/8 OU-MINI-1/4 OU-MINI-3/8 OU-MIDI-3/8 OU-MIDI-1/2 OU-MIDI-3/4 OU-MAXI-3/4 OU-MAXI-1

Applicable medium Compressed Air

Mounting type Pipe mounting or foot mounting

Assembly position Vertical ±5°

Working pressure range 0.05~1.2 MPa

Temperature range 0℃~60℃

Nominal flow rate(40μm) L/min 700 1000 1200 2000 2600 2600 7000 8000

Nominal flow rate(5μm) L/min 600 850 1050 1700 1800 2100 6500 7200

Grade of filtration 40μm/5μm

Capacity of condensate fluid 22ml 43ml 80ml

Min.

Standard nominal flow rate 3L/min 6L/min 10L/min

Port size G1/8 G1/4 G3/8 G3/8 G1/2 G3/4 G3/4 G1
