Air Filter And Regulator - China
price: contact company for price

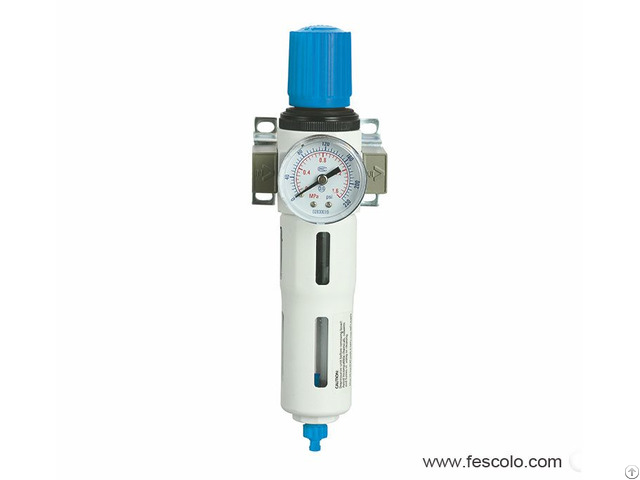

Air Filter & Regulator
Characteristics:
1) Filter and pressure regulator combine a single unit, and cleans the compressed air of fluid oil, condensation
and dirt particles.
2) The OF with water separate cleans the compressed air of fluid oil, condensation and dirt particles.
For special application, the standard 40µm filter element may easily be replaced by a 5µm filter element.
3) The OR maintain imputting constant operating pressure despite fluctuation in line pressure&the amount
of air consumed.
4) Different thread type can be offered according to customers' requirements, e.
g: PT, NPT etc.
Boby size MINI MIDI MAXI
Model OFR-MINI-1/8 OFR-MINI-1/4 OFR-MINI-3/8 OFR-MIDI-3/8 OFR-MIDI-1/2 OFR-MIDI-3/4 OFR-MAXI-3/4 OFR-MAXI-1
Applicable medium Compressed Air
Mounting type Pipe mounting or foot mounting
Assembly position Vertical ±5°
Working pressure range 0.05~1.2 MPa
Temperature range 0℃~60℃
Nominal flow rate(40μm) L/min 750 1400 1600 3100 3400 3400 9000 10000
Nominal flow rate(5μm) L/min 650 1200 1350 2400 2500 2500 7300 7600
Grade of filtration 40μm/5μm
Capacity of condensate fluid 22ml 43ml 80ml
Min.
Standard nominal flow rate 3L/min 6L/min 10L/min
Port size G1/8 G1/4 G3/8 G3/8 G1/2 G3/4 G3/4 G1
FESCOLO manufacturing Air Cylinder Kits, including Male Clevis, Female Clevis, Y Joint, Float Joint, Joint Bearing, Fish eye Joint, Flange Mount Bracket, Mount Bracket, Mini Cylinder Kits, Square Barrel etc.
