Ptc Extra Large Glass Polariscope Polarimeter - China

price: 3900.00 Dollar US$

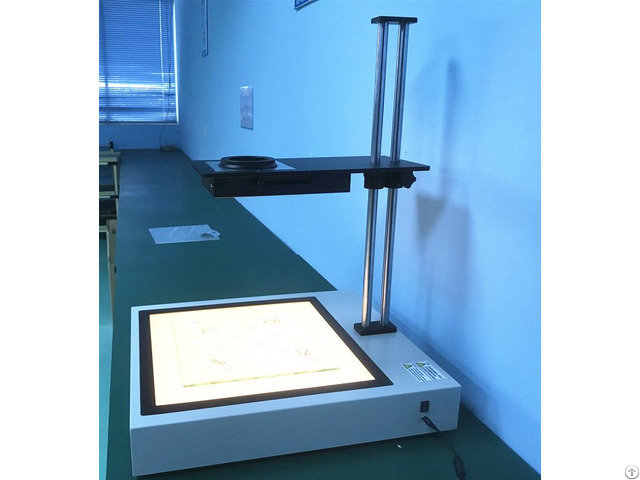

Ptc Extra Large Glass Polariscope Polarimeter

Products Photos Catalog Ptc Glass Polariscope Photos Catalog

Polariscope detecting glass stress (Ref.

PSV-413L)

Function

1 - Observe thermal stress distribution after annealing 2 - Measure glass tempering grade 3 - Measure optical retardation caused by thermal stress in glass Specification

Model : PSV-413L

Analyzer : Diameter 78mm

Viewing field : 400×400mm

Glass tempering grade : 0-10

Measuring range ( Optical retardation ): 0-280nm

Measure height: ( adjustable ) Max 600mm

Light Source : Warm white LED light Size : W485×D584×H732mm

Weight : 20Kg


Company Contact:


  • Phone: 8618913228862

  • Address: NO. 189 , Zhangji Road , Eocnomic Development Zone, Kunshan , China (Mainland), China

  • Email: Email


Published date: November 18, 2021

  • Business Description: Technology-leading Stress Measurement

    PTC specializes in optical inspection and stress measurement solutions , involving glass, plastic, optical film, flat panel display, PCB and more industries.

    After years of research and practice, we have successfully developed

    well received products, such as Surface Stress Meter, Polariscope and AOI machine.
