1 - Introduction

Integral Battery safety control system is mainly applied to test battery performances when battery in hazard environment or damaged externally by electrical test and mechanical test, which is introduced by research institute and battery manufacturers.

It is complied with standards from UL, IEC, UN, GB, QC, YD etc, and designed with remote test method to perform testing projects.



2 - Features

Available to customize by increasing or reducing testing projects in compliance with customers’ demands or different standards;

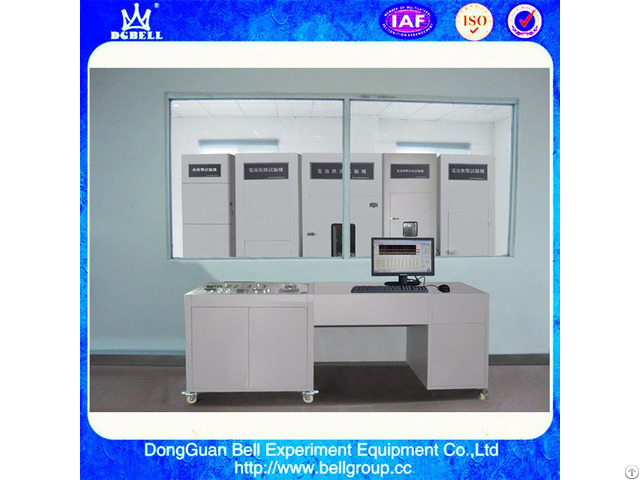

One Control cabinet to control all testing systems;

Compartment design can be available to make all equipment in same height with the advantage to reduce to time, cost and mobile to move & upgrade test equipment.

3 - Main Technical Parameters

Crush, Nail Penetrate

Test Method

Crush

The test battery is placed between two planers and approximate 13KN crush force can be performed through hydraulic arm with an 32 mm diameter piston or bench clamp;

The crush remains till hydraulic pressure reading data up to 17Mpa.

Once crush force reached and system will release automatically;

Nail Penetration

Battery specimen is placed and fixed in a planner, nail penetration speed at 10mm ~ 40mm remains to setting time and pull out steel nail automatically to complete test.

Pressure Range

10KN~15KN(Controllable )

Top Crush Tray Diameter

150mm (larger than or equal to 20cm²)

Force Accuracy

±1%

Driven Method

Hydraulic

Nail Penetration Speed

Speed at 10~60mm/s (Controllable and digital display)

High Temperature Nail

φ3 &5mm

Nail Penetration Relay Time

0~9999 s(controllable)

Impact

Test Method

Battery specimen is placed on a planar, a bar with its diameter is placed on the center of the battery specimen, a weight at 9.1kg drop onto battery specimen from height of 610mm.

Battery crush is placed onto shock bench, a weight drop free from a height of 100mm to hit the fixed battery (the max.

Area side is vertical to bench);

Main Technical Parameters

Drop Weight

9.1kg, 10kg

Drop Height

0~1000mm(Digital Display)

Cross Bar Diameter

15.8 mm

Elevating Method

Electrical Elevating

Low Air Pressure

Test Method

Battery is placed into vacuum oven after recharged.

After sealed, reduce air pressure less than and equal to 11.6Kpa (altitude at 15240m) and remain 6hours for testing.

Vacuum Rate

1.3Kpa

Air Pressure

0~100Kpa Controllable

Display Method

Digital

Unit

Kpa

Timer

0~9999(Hour, Mminutes, Second change-over)

Internal Dimension

W500 X D500 X H500mm

Internal Material

SUS 304# Stainless Steel (thickness 6.0mm)

Free Drop

Test Method

Battery specimen drop free from a height of 100mm onto the concrete.

Each side of battery for drop test, total 6 tests

Drop Height

300~1500mm

Lifting Method

Electronic Lifting

Drop Method

Hydraulic Drop

Testing Point

Free falling

Drop Plate Material

Concrete board, marble board, wooden board for selection

Short Circuit

Test Method

In a condition of 55±5℃, battery is connected to thermal coupling (contact of thermal coupling is fixed onto the center of the max.

area side of battery) and placed in vent cabinet and make circuit-circuit for positive pole and negative pole with short-circuit of 80mΩ±20mΩ, any condition listed below will stop test:

A.

Battery temperature drop to 20% of peak value;

B.

Short-circuit time reaches 24 hours

Temp.

Range

RT+10℃~100℃or 0~100℃( with compressor cooling to maintain temperature below ambient temperature)

Temp.

Fluctuation

±1℃

Temp.

Deviation

±2℃

system internal resistance

80mΩ±20mΩ(optional )

Max.

Short circuit current

1000A or customize

Internal Dimension

W500 X D550 X H500mm

Thermal Shock

Test Method

Battery is placed in hot oven with temperature rises at a rate of(5±2)℃/min to (150±2)℃ and remain 30 min.

Temp.

Range

RT+10℃~+180℃ controllable

Temp.

Deviation

±2℃

Temp.

Rising Speed

5℃±2℃/min(linear, controllable)

Internal Dimension

W500×D500×H600mm

Burning

Testing Method

Battery is placed in a hole with its diameter 4 inches and a cover place onto the plane bench.

The cover plate is made of 20 holes per inch steel mesh or steel wire at 0.017 inch (0.43mm); a mesh screen with 8 sides at size of 2 inches(610mm width) and 1 inch (305mm height) is surrounded; The metal mesh is made of 16-18 wires per inch with wire diameter of 0.010 inch (0.25mm) metal wire.

Specimens is placed onto metal mesh, cover on the central hole and heat to explode or damage.

Burner

Bunsen Burner, internal diameter of lamp at 0.375 inch (9.5mm) with length 100mm

Burning Time

0~9999 H, M, S Free setting

Flame Height

Controllable

Test Bar

Diameter 6.35mm, Height 305mm

Octagon cage subtense size

610mm

Edge size

Top & bottom edges size of octagon should be 12.7 x 12.7mm

Testing Hole

Diameter 102mm

Firing Devices

Auto fire( remote control in 8 meters)
