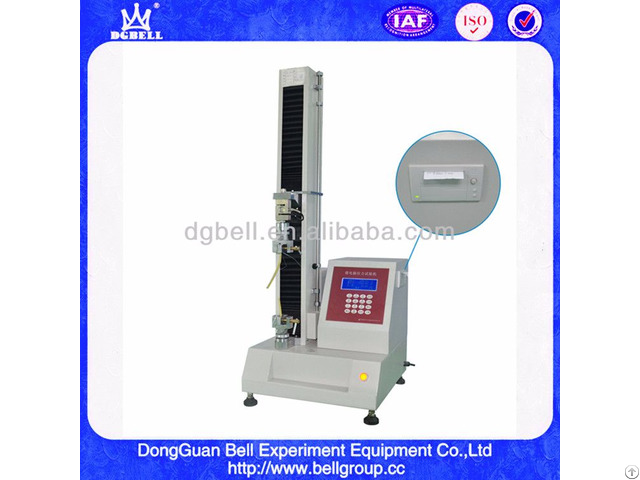

Astm Universal Tensile Strength Tester Testing Machine Price - China

General Intraduction

This Machine is designed and manufactured to measure & test tensilestrength, compression strength, peeling strength(90 degree or 180 degree), tearing strength, shearing strength with accuratemeasuring & testing performance for semi-finished products, finished products in adhesive tape, plastic, rubber, textile, synthetic chemical, wire & cable, leather industries etc.

Standard Compliance

GB/T 2792-1998 Test method for peel strength of pressure-sensitive tape at 180°angle

GB 7753-87 Test method for tensile properties of pressure sensitive adhesive tapes

JIS K6854-1-1999 Adhesives -- Determination of peel strength of bonded assemblies -- Part 1: 90 degree SIGN peel

Testing Performance

1 This machine is designed with elegant & neat appearance that compares with other competitors( Some Tester appearance parented nationally); Button control and digital input method is introduced that easy to operate and learn;

2 EN/CN language operating Interface as well as multi-dialogue operating menu for tester control;

3 Foremost components to the machine are selected the branded ones such as servo motor, controller, loading sensors from Japan, Korea or other couturiers;

4 High Precise Ball Screw Loading system with excellent and stable loading performance while enables a long service life, stable test performance and power saving;

5Various Protective methods are designed with electrical protection, overloading protection, over displacement protection, travel limit protection etc.

6 This machine is designed with simple, reliable, powerful and easy-to-operate

7 Open Data Bank System: It is available for operator to load test result and test processing data (available when introduced with external computer);

Technical Parameters

Tester Name

Adhesive Tape Peel Strength Tester

Max.

Testing Force

50KG /500N

Unit

Kgf, N, LB

Operating Method

Button Input & Digital Display (Computer with Software System as optional)

Test Resolution

1/200000

Test Accuracy

≤±0.5%

Test Velocity

10-500mm/min (Controllable)

Test Spacing

600mm( Without Testing Fixture)

Test Width Approx.



120mm( max)

Motor

Servo motor

Power Source

220V, 50Hz, Power

0.5KW

Gross Weight Approx.

75kg

Machine size

64×45×120CM

Technical Condition

1 - Environment Temp.

: RT±10℃

2 - Relative Humidity: 10%--85%RH non-condensing

3 - The machine should be horizontal installation, should have more than 0.7 m of space around the machine.

4 - Work environment should be clean, dry, no vibration and corrosive gas.

5 - Please do not use this machine in the magnetic field environment
